تقویت کننده آنتن تی پی لینک RE580D
RE580D
گارانتی (36 ماه - پارس ارتباط)
- Simultaneous 600Mbps on 2.4GHz + 1300Mbps on 5GHz totals 1.9Gbps Wi-Fi speeds
- 3 dual band external antennas and 700mW high-powered amplifiers eliminate “dead zones” and greatly extend your existing wireless coverage
- Beamforming technology delivers highly targeted and efficient wireless connections
- 5 Gigabit Ethernet ports provide gigabit speed for wired connections
- Dual core 1GHz processor ensures no interruption when simultaneously processing multiple wireless or wired tasks
- High Speed mode creates a lightning fast wireless connection for bandwidth-intensive tasks
- Works with any Wi-Fi router or wireless access point
Ultimate Wireless Extension
AC1900 Wi-Fi Range Extender
RE580D
Expand any Wi-Fi Network by up to 10,000sq. ft.
With three external, dual band antennas and 700mW high-powered amplifiers, the RE580D can establish a stable wireless
connection to any Wi-Fi router and augment the network's coverage by up to 10,000 square feet. The dual core 1GHz processor
provides maximum Wi-Fi performance, keeps your smartphones and tablets connected as you move around your home.
Simultaneous Dual Band Wi-Fi
– Speeds of up to 1900Mbps
The RE580D utilizes the 802.11ac Wi-Fi standard to deliver dual band Wi-Fi
connections with combined speeds of up to 1.9Gbps (1.3Gbps on the 5GHz band and
600Mbps on the 2.4GHz band). This impressive speed means you can count on the
RE580D to provide reliable connections for bandwidth-intensive tasks, such as HD/4K
video streaming, lag-free gaming, and large file downloads.
-
1300Mbps
-
600Mbps
Amazing online experience for wired devices
With five built-in gigabit Ethernet ports, the RE580D can provide fast, stable connections to all of your
favorite wired devices, including smart TVs, game consoles, DVs, and Blu-ray players.
High Speed Mode
The RE580D can use both the 5GHz and 2.4GHz bands to create
a single, lightning fast connection by transmitting data on one
channel and receiving data on the other. This is especially
beneficial when performing bandwidth-intensive tasks, such as
HD video streaming or online gaming.
A Design For Easy Use
The RE580D features an intuitive, user-friendly design that makes installation, configuration, and
positioning easier than ever.
Flexible Display
The RE580D and its display can be switched to
vertical orientation so that you can enjoy the perfect
combination of aesthetics and functionality.
HARDWARE FEATURES | |
|---|---|
| Interface | 5 * 10/100/1000Mbps Ethernet Port (RJ45) |
| Button | RE (Range Extender) Button, Reset Button, LED Button, Power Button |
| Antenna | 3 external dual band antennas |
| External Power Supply | 12V/2.5A |
| Dimensions ( W x D x H ) | 9.5 X 6.4 X 1.7 in. (242 X 162 X 44mm) |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11a/b/g/n/ac |
| Frequency | 2.4GHz & 5GHz(11ac) |
| Signal Rate | 5GHz:Up to 1300Mbps 2.4GHz:Up to 600Mpbs |
| Reception Sensitivity | 5GHz: 11a 6Mbps: -92dBm 11a 54Mbps: -74dBm 11ac HT20 MCS8:-66dBm 11ac HT40 MCS9: -62dBm 11ac HT80 MCS9: -58.5dBm 2.4GHz: 11g 54M: -76dBm 11n HT20 MCS7: -73dBm 11n HT40 MCS7: -70.5dBm |
| Transmit Power | CE: <20dBm(2.4GHz) <23dBm(5GHz) FCC: <30dBm |
| Wireless Modes | Range Extender |
| Wireless Functions | Wireless Statistic Concurrent Mode boost both 2.4G/5G Wi-Fi band High Speed Mode for great speed for HD Gaming and video Access Control LED Control Domain Login Function |
| Wireless Security | 64/128-bit WEP WPA-PSK / WPA2-PSK |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |

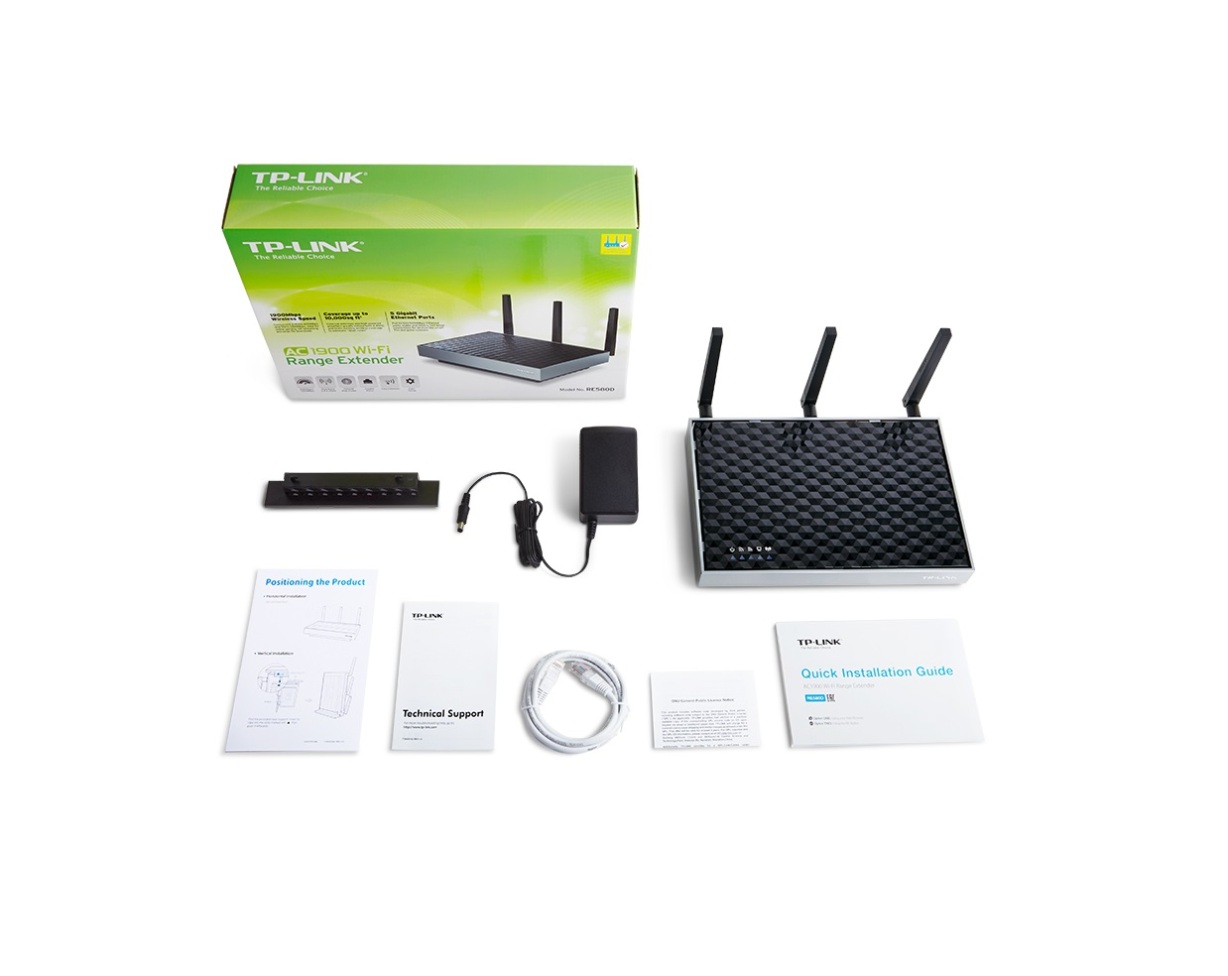

| Package Contents | AC1900 Wi-Fi Range Extender RJ-45 Ethernet Cable 3 detachable antennas Power adapter Quick Installation Guide |
| Box Dimensions (W X D X H) | 13.4 X 9.4 X 3.0 in. (340 X 240 X 76mm) |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux |
| Environment | Operating Temperature: 0°C~30°C (32°F~86°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
