کارت گرافیک پی ان وای کوادرو Quadro M4000 8GB GDDR5

Product Specifications

Minimum System Requirements

• Microsoft Windows® 10, 8.1, 8, 7, Vista, Linux®, or Solaris®
• PCIe x16 Gen 3 (preferred) expansion slot
• 2 GB or more of system memory, 8 GB recommended
• 200MB of available disk space for full driver installation
• Blu-ray or DVD-ROM drive
• Internet connection (if preferred for driver installation)
• DisplayPort, DVI, or VGA compatible display(s)

Package Contains

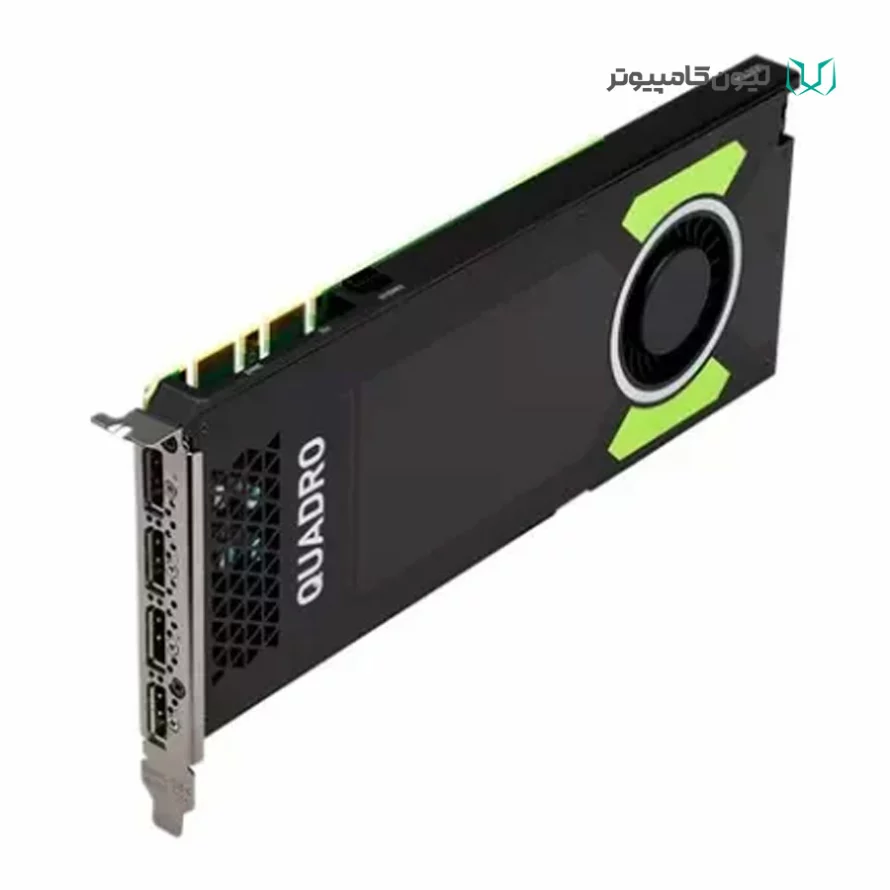

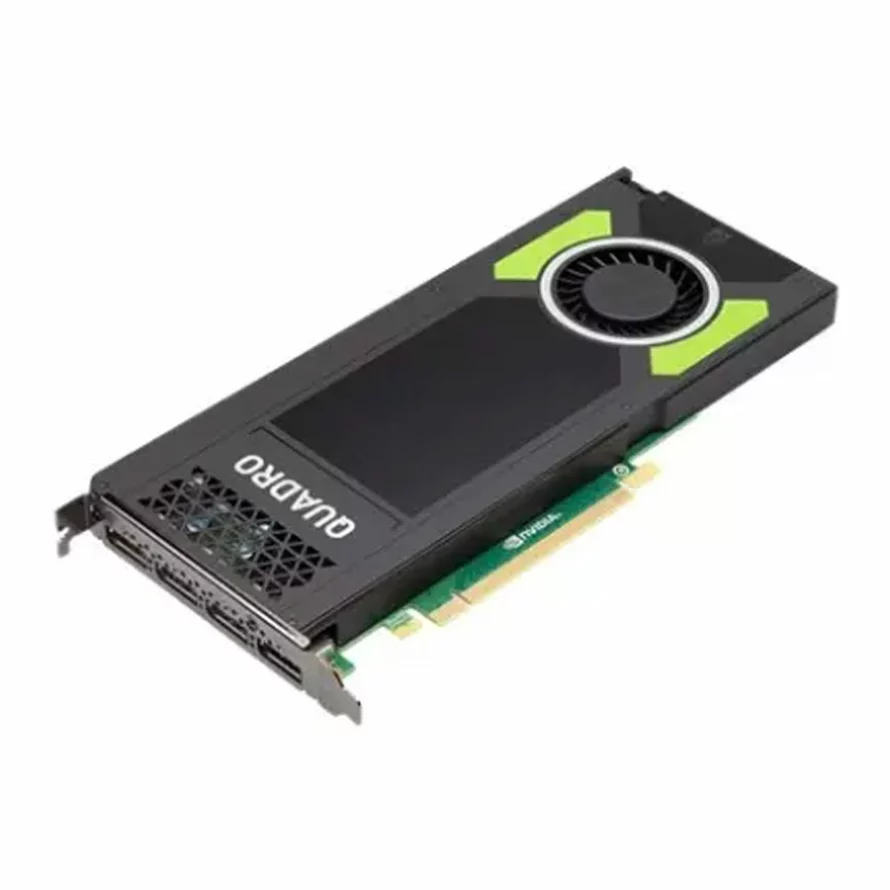

• NVIDIA Quadro M4000 professional graphics board
• Stereo connector bracket
• DisplayPort to DVI-D SL adapter
• 6-pin auxiliary power cable
• Software installation disc for Windows 10, 8.1, 8, 7, and Vista (32- and 64-bit)

Features and Benefits

3D Graphics Architecture

• Scalable geometry architecture
• Hardware tessellation engine
• NVIDIA GigaThread engine with dual copy engines
• Shader Model 5.0 (OpenGL 4.5 and DirectX 12)
• Up to 16K x 16K texture and render processing
• Transparent multisampling and super sampling
• 16x angle independent anisotropic filtering
• 128-bit floating point performance
• 32-bit per component floating point texture filtering and blending
• 64X full scene antialiasing
• FXAA and TXAA full scene antialiasing
• Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, MVC, VC1, DivX (version 3.11 and later), and Flash (10.1 and later)
• Dedicated H.264 encoder
• Blu-ray dual-stream hardware accelerating (supporting HD picture-in-picture playback)
• NVIDIA GPU Boost automatically adjusts the GPU engine throughput to maximize application performance.

Parallel Computing Capabilities

• SMX architecture (streaming multi-processor design that delivers greater processing and efficiency)
• HyperQ (allows multiple CPU cores to simultaneously utilize a single M6000 GPU to execute independent compute kernels)
• Dynamic Parallelism (GPU dynamically spans new threads without going back to the CPU)
• API support including: CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Java, Python, and Fortran
• NVIDIA Parallel Data Cache hierarchy (per SM L1 and unified L2 caches)
• Error-Correction Code (ECC) memory on graphics memory
• 96KB of RAM (dedicated shard memory per SM)

Advanced Display Features

• 30-bit color (10-bit per each red, green and blue channel)
• Support for any combination of four connected displays
• DisplayPort 1.2 (supporting resolutions such as 4096 x 2160 at 60 Hz)
• DisplayPort to VGA, DisplayPort to DVI (single-link and dual-link) and DisplayPort to HDMI cables optionally available (resolution support based on dongle specifications)
• 10-bit internal display processing (hardware support for 10-bit scanout for both windowed desktop and full screen, only available on Windows with Aero disabled and Linux
• NVIDIA 3D Vision™ technology, 3D DLP, interleaved, and other 3D stereo format support
• Full OpenGL quad buffered stereo support
• Underscan/overscan compensation and hardware scaling
• Support for NVIDIA Quadro Mosaic, NVIDIA NVIEW multi-display technology, NVIDIA Enterprise Management Tools
• Support for large-scale, ultra-high resolution visualization using the NVIDIA SVS platform which includes NVIDIA Mosaic, NVIDIA Sync and NVIDIA Warp/Blend technologies

DisplayPort and HDMI Digital Audio

• Dolby Digital (AC3), DTS 5.1, multi-channel (7.1) LPCM, Dolby Digital Plus (DD+), and MPEG-2/MPEG-4 AAC
• Data rates of 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz, 176KHz, and 192 KHz
• Word sizes of 16-bit, 20-bit, and 24-bit
