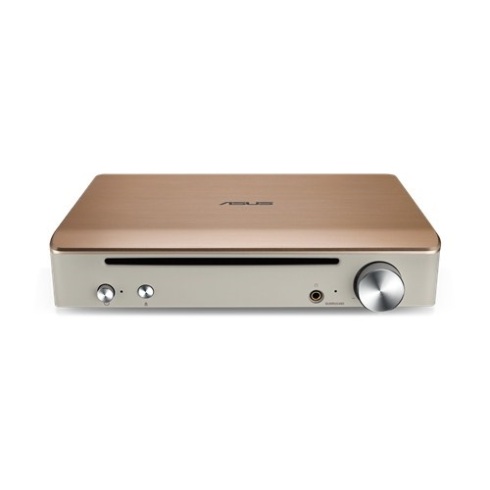

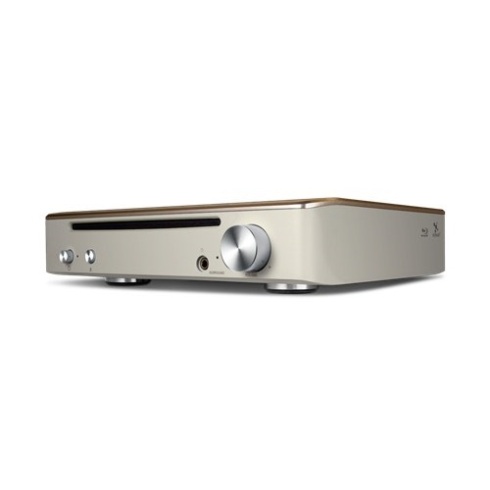

درایو نوری اکسترنال ایسوس Impresario SBW-S1 PRO With Sound Card

True 7.1-channel surround sound and virtual surround sound capability

Integrated 600 ohm headphone amplifier with two gain settings for optimized sound

114dB signal-to-noise ratio (SNR) delivers clear, high-definition audio

Blu-ray 3D support, 2D to 3D DVD conversion, DVD upscaling

Advanced security features including password-protected disc encryption and encoded file names

Impresario SBW-S1 PRO can also be used as a standalone sound card or optical drive

Color

Gold

Read Speed

BD-R : 6X
BD-RE : 6X
BD-R(DL) : 6X
BD-RE(DL) : 6X
BD-R(TL/QL) : 4X
BD-RE(TL) : 2X
DVD+R : 8X
DVD-R : 8X
DVD+RW : 8X
DVD-RW : 8X
DVD-ROM : 8X
DVD+R(DL) : 8X
DVD-R(DL) : 8X
DVD-ROM(DL) : 8X
CD-R : 24X
CD-RW : 24X
CD-ROM : 24X

Write Speed

BD-R : 6X
BD-R(DL) : 2X
BD-R(TL/QL) : 2X
BD-RE : 2X
BD-RE(DL) : 2X
BD-RE(TL) : 2X
DVD+R : 8X
DVD-R : 8X
DVD+RW : 8X
DVD-RW : 6X
DVD+R(DL) : 6X
DVD-R (DL) : 6X
CD-R : 24X

Interface

USB 2.0

Audio Performance

Output Signal-to-Noise Ratio (A-Weighted) (Front-out):
114 dB
Output THD+N at 1 kHz (Front-out):
0.00056% (-105 dB)
Frequency Response:
10 Hz to 48 kHz
Output Full-Scale Voltage:
Line out : 2 Vrms (5.65 Vp-p)
Headphone out : 7 Vrms (19.8 Vp-p)

Audio Processor

C-Media 6631A

Digital-to-analog Converter(DAC)

Cirrus Logic CS4398

Headphone Amplifier

TI TPA6120A2

Operational Amplifier

2 x NJM5532

WIMA Film Capacitor

2 x WIMA FKP2

Sample Rate and Resolution

Analog Playback Sample Rate and Resolution:
44.1/48/96/192 kHz @ 16 bit/24 bit
ASIO Driver Support:
44.1/48/96/192 kHz @ 16 bit/24 bit

Connectivity

Analog Output
4 x 3.5 mm jack(Headphone out /Side out/Center-Subwoofer out/Rear out)
2 x RCA (Un-Balanced)
Digital Output
1 x S/PDIF out

OS Support

Windows® 10
Windows® 8.1
Windows® 8
Windows® 7
Mac OS X 10.6 or Above

System Requirements

CPU: Intel® Core™ 2 Duo E6750 (2.66 GHz) or higher
Memory: 2 GB or more is recommended
Graphics Card: Intel® HD Graphics, AMD Radeon™ HD 5000, NVIDIA GeForce® 400 series or higher
Use HDCP Compatible display and graphic cards for High Definition Digital Output

Software

CyberLink Power2Go 8
CyberLink PowerDVD 12 with Magic Cinema
CyberLink PowerBackup 2.5
CyberLink InstantBurn 5

Dimensions

210 x 168 x 50 mm (LxWxH)

Weight

850 g

Power

Adapter Power  +12V ±5%, 3A
