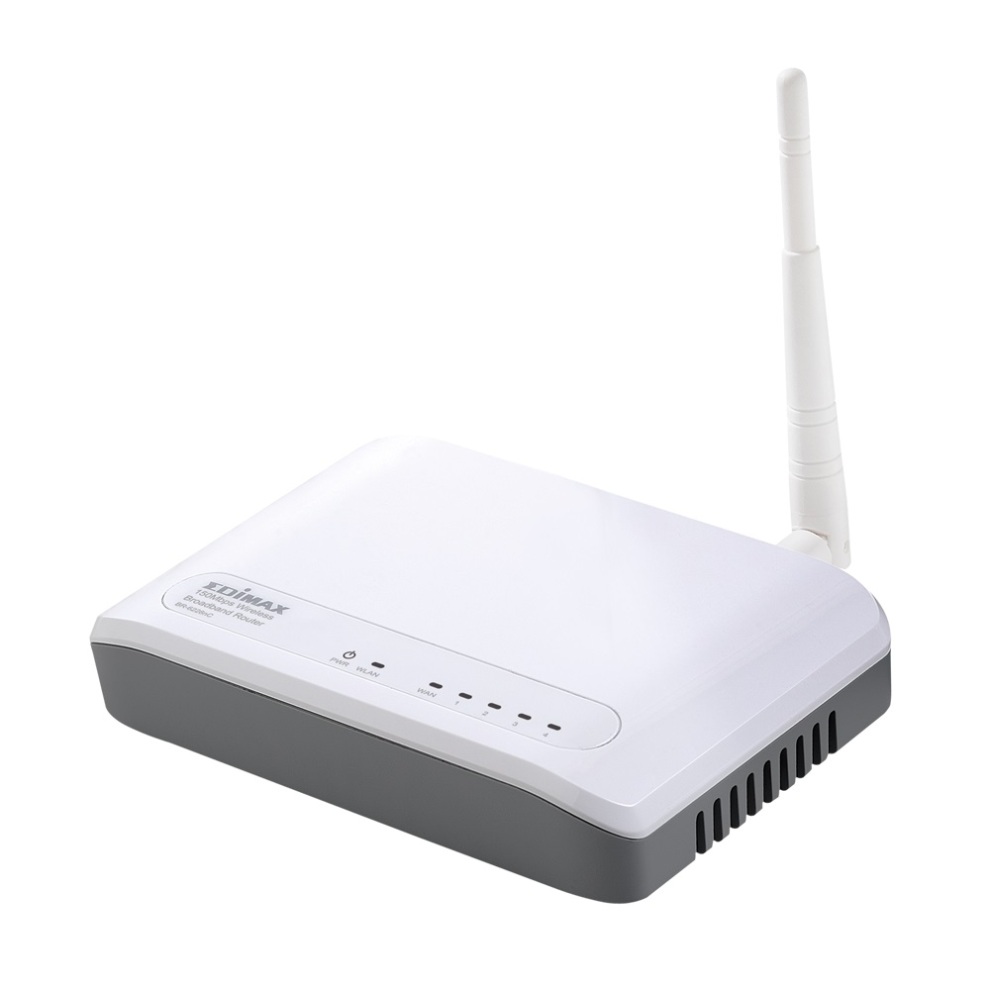

روتر ادیمکس BR-6228nC N150

FUNCTIONS

HARDWARE INTERFACE

MANAGEMENT

•Supports AP, AP Client, Bridge, Bridge+ WDS, and Universal Repeater modes
•Port Triggering for special applications
•DDNS and SIP
•Virtual Server and DMZ hosting
•MAC/IP filter and URL blocking
•Static routing
•UPnP architecture
•VPN Pass-Through (IPSec/PPTP)
•Schedule control

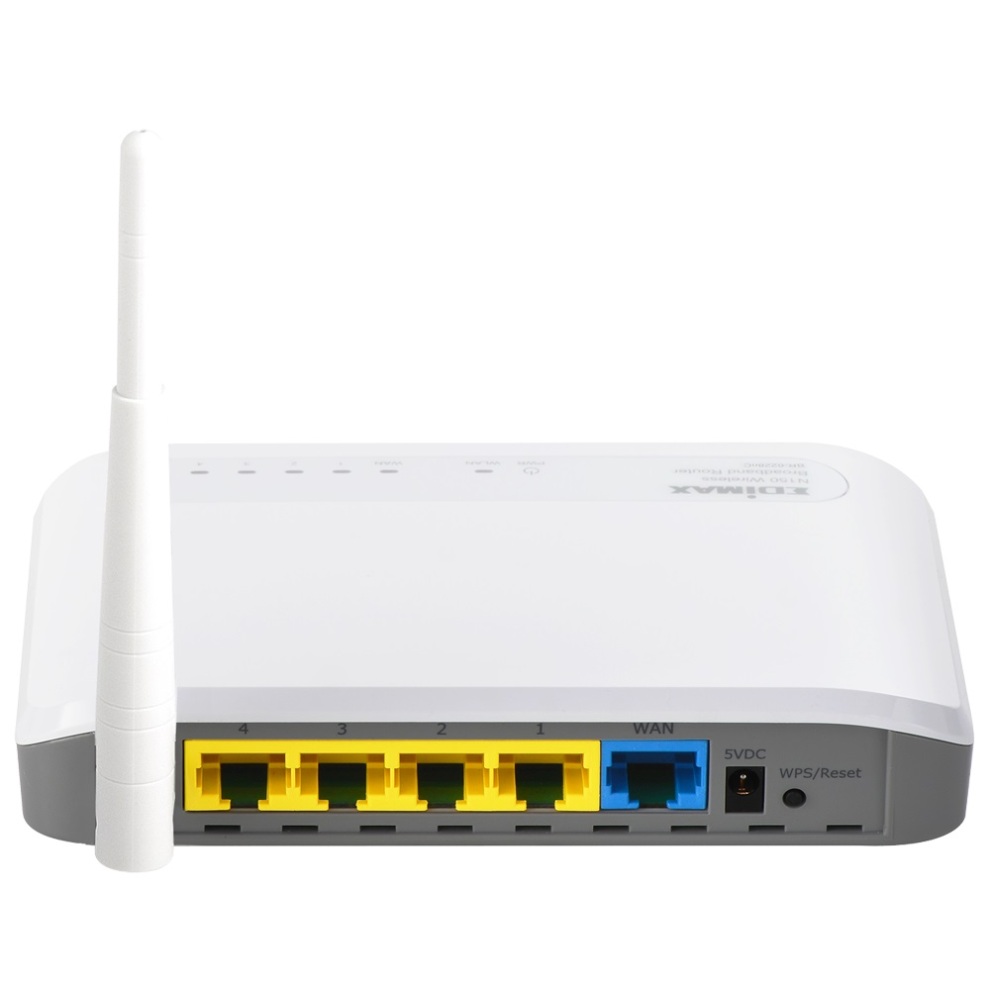

•1 x RJ-45 WAN port
•4 x RJ-45 Fast Ethernet LAN ports
•LED Indicators: Power, Wireless, WAN, LNK/ACT for LAN
•3dBi detachable antenna x 1
•WPS/Reset button

•12-language user interface
•Supports remote management
•System status and security Log (Web Interface)
•Firmware upgradable

WAN

SECURITY

OUTPUT POWER & SENSITIVITY GAIN (2.4GHz)

•Supports WISP connection mode
•Supports RJ-45 cable/xDSL modems
•WAN protocol: PPPoE, Static IP, PPTP, Dynamic IP, L2TP

•NAT/NAPT IP sharing
•64/128-bit WEP encryption and WPA-PSK, WPA2-PSK security
•DHCP Server/Client
•QoS for critical operations
•SPI Anti-DoS Firewall

•11n: 15±1dBm,
  11g: 15±1dBm,
  11b: 18±1dBm
•11n (40MHz): -68dBm,
  11n (20MHz): -71dBm,
  11g: -74dBm,
  11b: -87dBm

MEMORY

INSTALLATION KIT

HUMIDITY & TEMPERATURE

•4MB NOR Flash
•16MB RAM

•Multi-language EZmax Setup Wizard

•10-90% (non-condensing)
•0-45°C

POWER ADAPTER

DIMENSIONS

 CERTIFICATIONS

•DC 5V, 1A

•134 (W) x 110 (D) x 26 (H) mm

•CE, FCC
