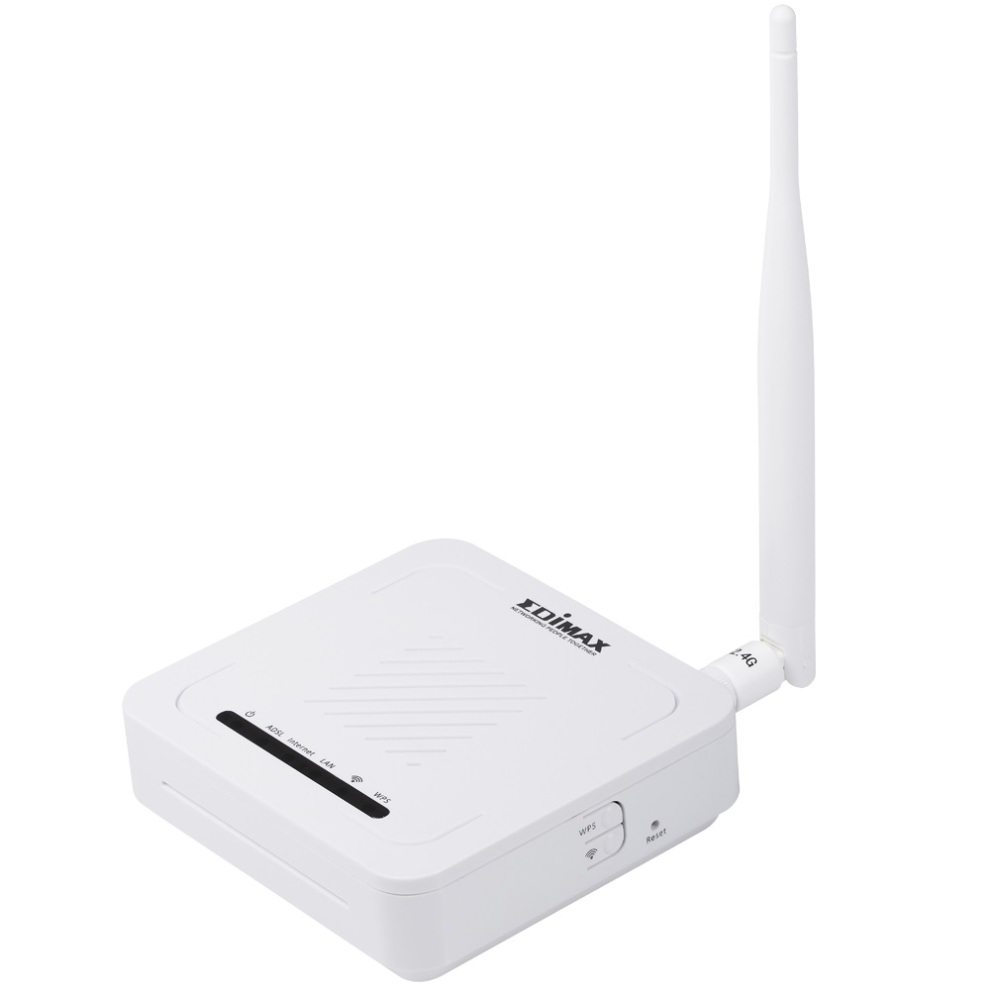

EDiMAX AR-7182WnA N150 Wireless ADSL Modem Router

HARDWARE INTERFACE

MANAGEMENT

OUTPUT POWER

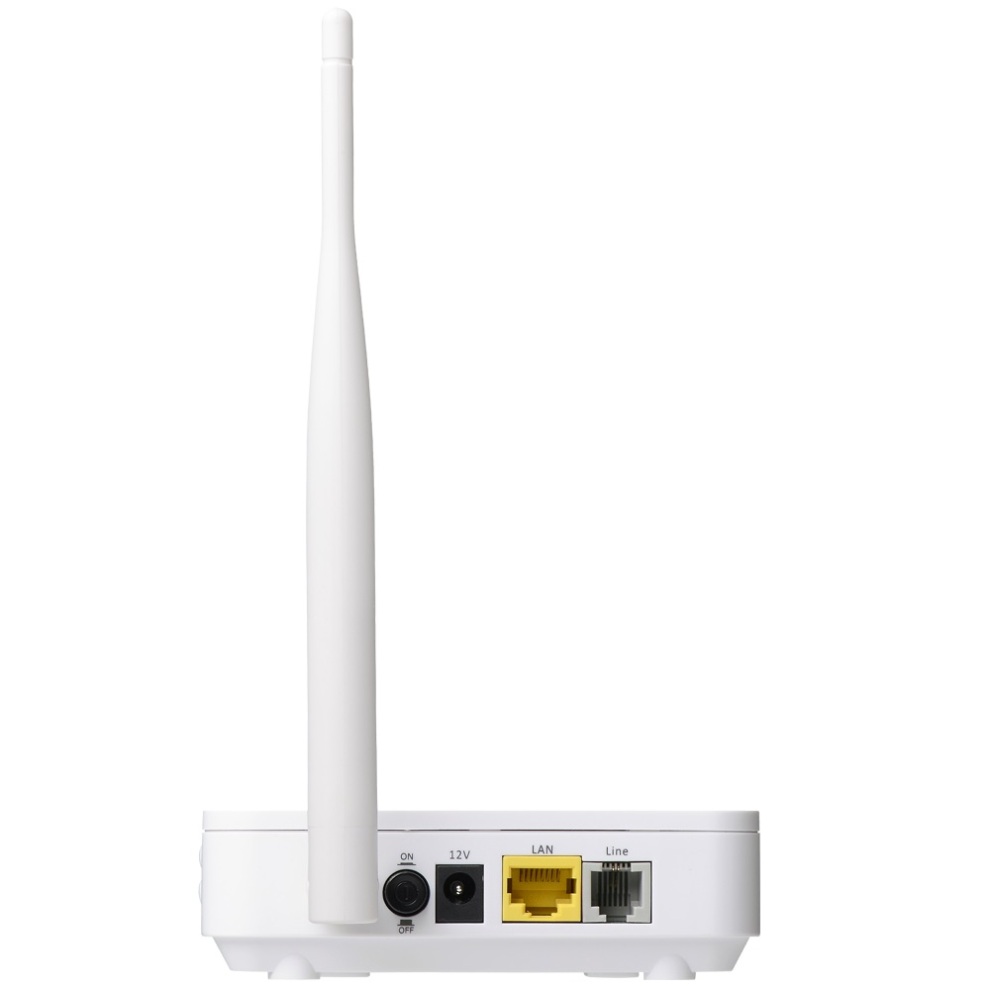

•1 x RJ-11 WAN-port
•1 x RJ-45 Fast Ethernet LAN ports

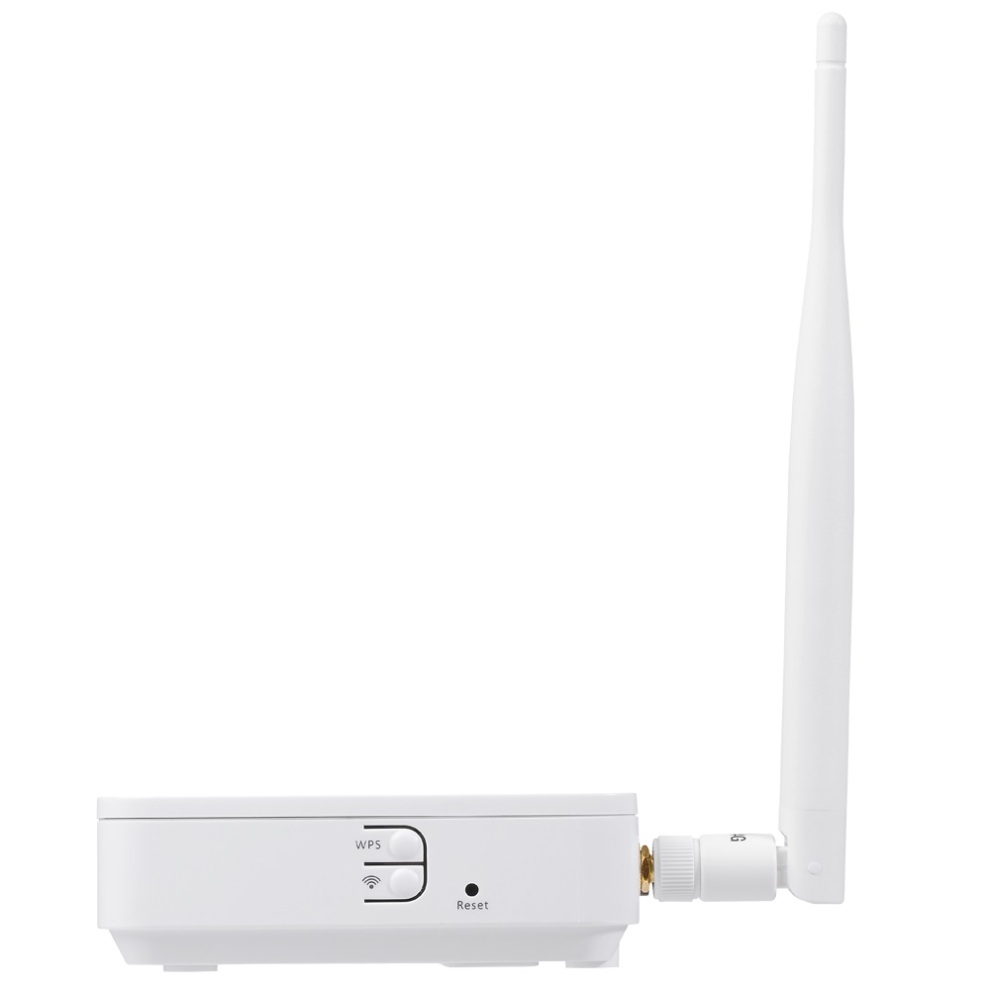

•1 x Reset button for factory default settings
•1 x WPS button
•1 x WLAN button
•1 x 5dBi antenna
•Power on/off button
•LED indicators: power, ADSL, LAN, WLAN, WPS

•Web based configuration
•Web page/XMODEM/FTP/TFTP firmware upgrade
•Command-line interface via serial port, telnet or SSH
•Universal Plug and Play (UPnP)
•WAN Management Protocol (TR-069)
•Date/time update from SNTP time server

•11n: 14±1.5dBm
•11g: 15±1.5dBm
•11b: 16±1.5dBm

ADSL FEATURES

WIRELESS FEATURES

ROUTING FEATURES

•Annex A, B,I, J, L & M
•ANSI T1.413i2
•ITU G.992.1 (G.dmt), ITU G.992.2 (G.lite)
•ITU G.992.3 ADSL2 (G.dmt.bis), ITU G.992.4 (G.lite.bis)
•ITU G.992.5 (G.dmt.bisplus), ITU G.994.1 (G.hs)
•ITU G.995.1, ITU G.996.1, ITU G.997.1
•Power saving mode, L3 to L0 initialization
•Supports multiple PVCs
•Supports traffic shaping (ATM QoS) UBR, CBR, VBR-rt, VBR-nrt
•Supports OAM F4/F5 loop-back, AIS, and RDI OAM cells
•UNI 3.1/4.0 permanent virtual circuits

•Compatible with IEEE 802.11b,IEEE 802.11g and IEEE 802.11n
•Supports auto channeling
•1T1R mode with 150Mbps PHY rate for both transmitting and receiving
•Legacy and high throughput modes
•20MHz/40MHz Bandwidth
•Supports 64/128-bit WEP, 802.1x, WPA and WPA2 wireless security
•Multiple BSSID support
•Wireless frequency range: 2400–2483 MHz ISM band

•802.1D MAC Bridge
•RIP v1 (RFC1058), RIP v2 (RFC1723)
•IGMP Snooping (V1/V2/V3)
•IGMP Proxy (V1/V2)
•IPv4 , IPv6 (IPv6 ready logo Phase II core for router, Dual stack)
•DHCP Server/Relay, DHCP Client (WAN Port)
•PPPoE, PPPoA, IPoA , RFC 2684 Bridging/Routing
•NAT and PAT & Static Routing
•ALG (MSN Messenger, PPTP, L2TP, FTP, RTSP (RealTime Streaming Protocol), SIP v1/v2, H.323, IPSEC
•DMZ, Virtual Server ( Port forwarding)
•VPN (IPSec, PPTP, L2TP) pass-through

SECURITY

FREQUENCY & MODULATION

CHIPSET / MEMORY

•Management access control for LAN/WAN sides
•Prevent port scanning, denial-of-service (DOS) and LAND attacks
•Stateful packet inspection (SPI)
•IP spoofing, IP with zero length
•IP/MAC filtering, application filtering, URL filter

•2400–2484 MHz
•802.11b: CCK, DQPSK, DBPSK
•802.11g: 64QAM, 16QAM, QPSK, BPSK, DSSS
•802.11n: 64QAM, 16QAM, QPSK, BPSK

•RT63363+RT5390HL+RT63087
•2 MB NOR Flash
•8 MB SDRAM

HUMIDITY & TEMPERATURE

DIMENSIONS / WEIGHT / POWER

 CERTIFICATIONS

•Operating: 0 to 40°C
•Storage: -40 to 70°C
•Operating: 10 to 90% RH (Non-condensing)
•Storage: 5 to 95% RH (Non-condensing)

•109 x 102 x 33 mm
•140g
•12V DC, 0.5A
•Consumption: 5W

•CE
