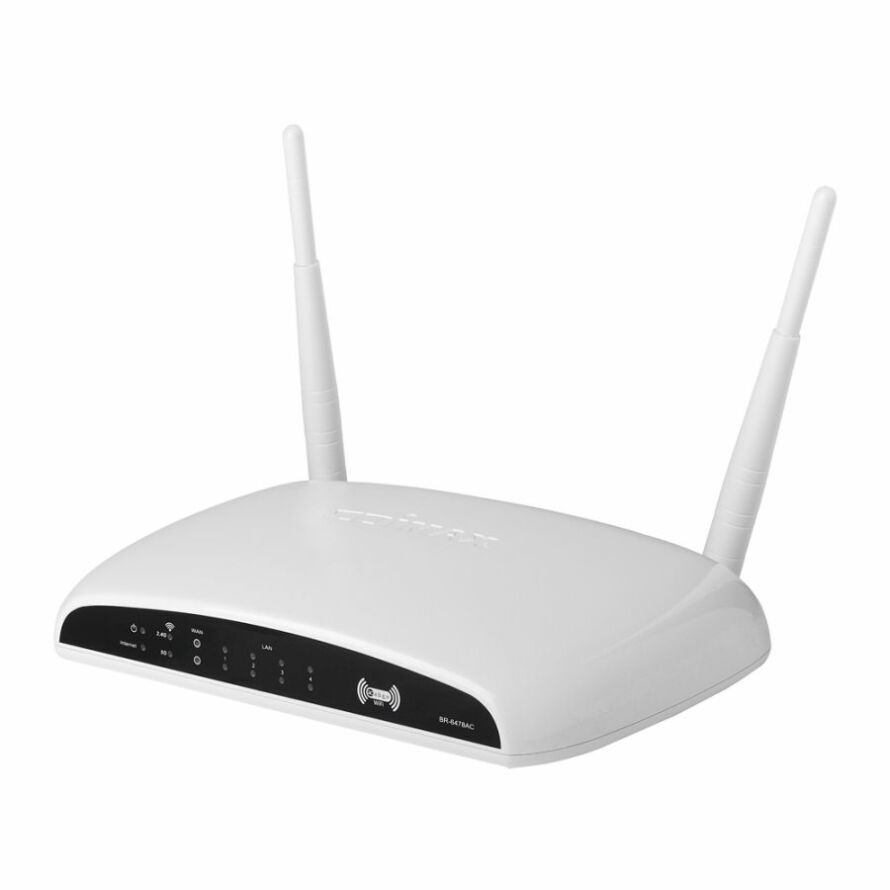

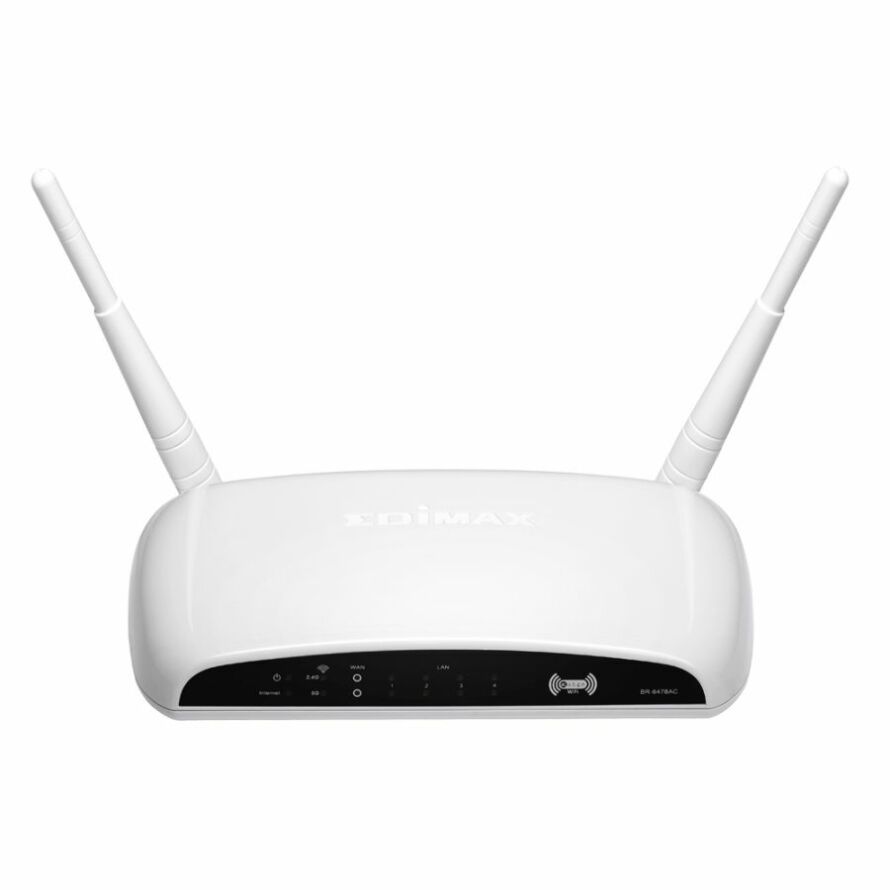

اکسس پوینت ادیمکس BR-6478AC AC1200

FUNCTIONS

HARDWARE INTERFACE

MANAGEMENT

•Supports router, access point & range extender modes
•Guest network
•IGMP proxy and IGMP snooping
•DDNS and DHCP
•Port triggering for special applications
•Virtual server and DMZ hosting
•MAC/IP filter and URL blocking
•iQoS for smart bandwidth management
•Static routing
•UPnP architecture
•VPN pass-through (IPSec/PPTP)
•Wi-Fi schedule control

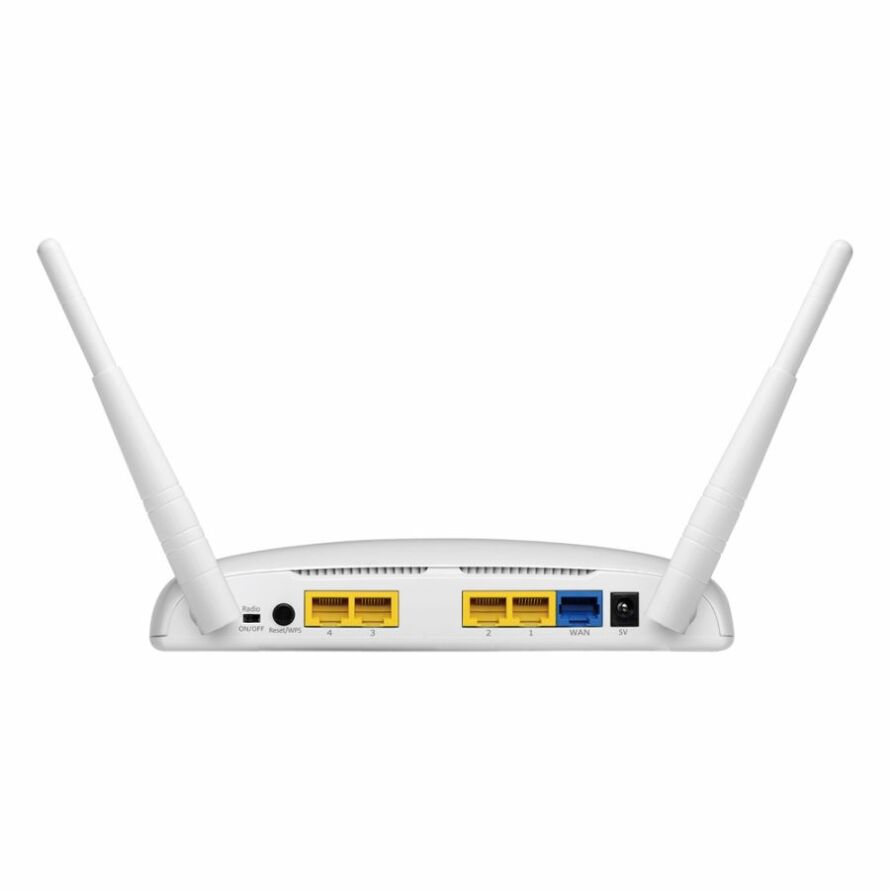

•1 x RJ-45 gigabit WAN port
•4 x RJ-45 gigabit LAN port
•LED indicators: power, Internet, wireless, WAN LNK/ACT, LAN LNK/ACT
•2 x 3dBi dual-band antennas
•WPS/Reset button
•Wireless on/off switch

•Multi-language user interface
•Supports remote management
•System status and security log
•Firmware upgradable
•Smart iQ Setup, no CD required
•Supports smartphone, tablet or laptop setup (iOS 4 or Android 4 and above are required for smartphone or tablet setup).

WAN

OUTPUT POWER & SENSITIVITY GAIN (5GHz)

OUTPUT POWER & SENSITIVITY GAIN (2.4GHz)

•Supports WISP connection mode
•Supports RJ-45 cable/xDSL modems
•WAN protocol: PPPoE, static IP, dynamic IP, PPTP and L2TP

Output Power
•11a(54Mbps): 12±1.5dBm
•11n(20MHz, MCS7): 12±1.5dBm
•11n(40MHz, MCS7): 12±1.5dBm
•11n(80MHz, MCS9): 10±1.5dBm
Receive Sensitivity
•11a(54Mbps): ‐70±2dBm
•11n(20MHz, MCS7): ‐68±2dBm
•11n(40MHz, MCS7): ‐64±2dBm
•11n(80MHz, MCS9): -54±2dBm

Output Power
•11b (11Mbps): 16±1.5dBm
•11g (54Mbps): 14±1.5dBm
•11n (20MHz, MCS7): 13±1.5dBm
•11n (40MHz, MCS7): 13±1.5dBm
Receive Sensitivity
•11b(11Mbps): ‐84±2dBm
•11g (54Mbps): ‐70±2dBm
•11n(20MHz, MCS7): ‐65±2dBm
•11n(40MHz, MCS7): ‐63±2dBm

SECURITY

MEMORY

HUMIDITY & TEMPERATURE

•64/128-bit WEP encryption, WPA and WPA2 security
•QoS for critical operations
•SPI anti-DoS firewall

•4MB NOR Flash
•64MB RAM

•10-90% (non-condensing)
•0-40oC

POWER ADAPTER

DIMENSIONS & WEIGHT

 CERTIFICATIONS

•DC 5V, 2A

•196mm x 114mm x 36mm
•315g

•FCC/CE
