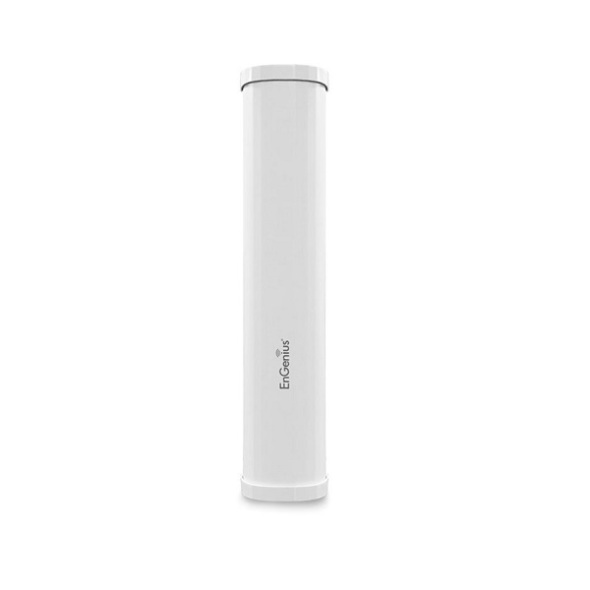

تقویت کننده وای فای اینجنیوس SA2216

Technical Specifications

Operating Frequency
2.3 ~ 2.7 GHz

Radio Chains/Spatial Streams
2x2 MIMO

Gain
16dBi

Polarization
Dual

Vertical Beam Width
9-Degrees

Horizontal Beam Width
120-Degrees (6dB)

Max. VSWR
2:1

Cross-Pol Isolation
25dB

Impedance
50 ohms

Mechanical Specifications

Antenna Port / Type
2 / N-Type Plug
Female

Compatible Radio Platforms

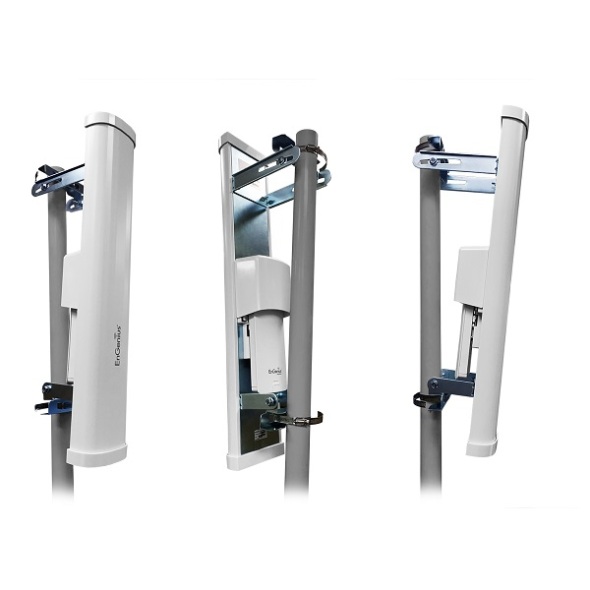

Access Point Mount Bracket
EnGenius APs – ENS202EXT (RP-SMA Connectors)

N-Type Connectors
EnGenius and most other outdoor APs with external antenna conectors


Environmental & Physical

Temperature Range
Operating: -4°F ~ 158°F (-20°C ~ 70°C)
Storage: -30°F ~ 80°F (-22°C ~ 176°C)

Humidity (non-condensing)
Operating: 90% or less
Storage: 95% or less

Wind Survivability
125 MPH

Device Dimensions & Weights

Device
Weight: 11 lbs. (5 kg)
Height: 29.13” (740 mm)
Width: 5.9” (150 mm)
Depth: 2.6” (66 mm)

Packaging
Weight: 9 lbs. (4 kg)
Height: 39.9” (101.5 cm)
Width: 5.9” (150 mm)
Depth: 8.2” (210 mm)

Package Contents
(1) Sector Antenna
(2) U-Brackets
(2) Pole Brackets
(2) Pole Clamps
(4) Serrated Flange Bolts
(4) Serrated Flange Hex Nuts
(3) Mount Bracket Bolts
(1) Protective Shroud
(1) Access Point Mounting Bracket
Quick Installation Guide

Warranty
1 Year

Compatible EnGenius Access Points
2.4 GHz Plug-in Mounting System
ENS202EXT (w/ RP-SMA connectors – cable not included)
Dual-Band 2x2 N-Type Connectors
ENH710EXT
