Features
- Ventilated front panel enhanced superior airflow
- Bottom-placed PSU design for easy installation
- Supports high-end graphic cards up to 12.5”/32cm

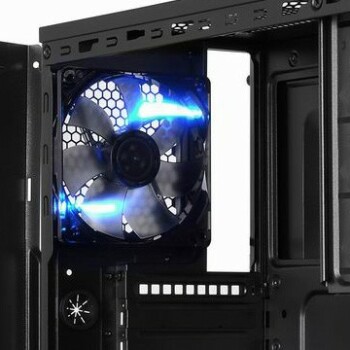

- Rear 120mm silent fan with blue LED
- Built-in latest USB3.0 SuperSpeed internal header
Unique Design
|
|
Ready for long graphic card up to 12.5” |
Internal USB 3.0 Connection |
The Cooling System - Air Cooling
HDD Air Cooling System 1. Front (intake) : 120 x 120 x 25 mm fan (Optional) CPU Air Cooling System 2. Top (exhaust) : 120 x 120 x 25 mm fan x 2 (Optional) 4.Side (intake) : 120 x 120 x 25 mm fan (Optional) |
P/N | VO700A1W3N |
Case Type | Mid Tower |
Dimension (H x W x D) | 429 x 196 x 481 mm (16.9 x 7.7 x 18.9 inch) |
Net Weight | 4.5Kg / 9.9lb |
Side Panel | Transparent Window |
Color | Exterior & Interior : Black |
Material | SGCC |
Cooling System | Front (intake) : Optional 120 x 120 x 25 mm fan x 1 Rear (exhaust) : 120 x 120 x 25 mm Blue LED fan (1000rpm,16dBA) Top (exhaust) : Optional 120 x 120 x 25 mm fan x 2 Side (intake) : Optional 120 x 120 x 25 mm fan Bottom (intake) : Optional 120 x 120 x 25 mm fan |
Drive Bays | - Accessible: 3 x 5.25’’, 1 x 3.5’’ - Hidden: 5 x 3.5’’, 1 x 2.5’’ |
Expansion Slots | 7 |
Motherboards | 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
I/O Ports | USB 3.0 x 1, USB 2.0 x 1, HD Audio x 1 |
PSU | Standard PS2 PSU |
LCS Upgradable | Supports 1/2”、3/8”、1/4” water tube |
Other | CPU cooler height limitation: 155mm VGA length limitation: 320mm |
