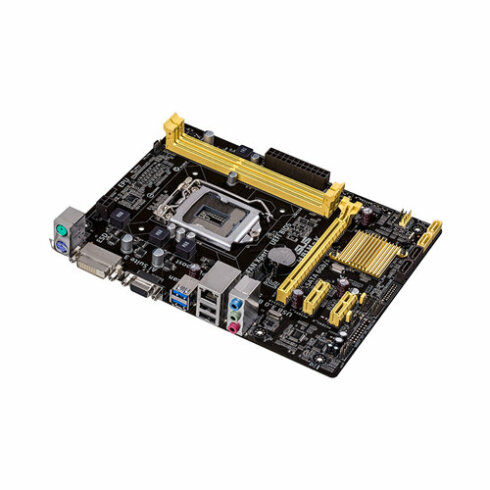

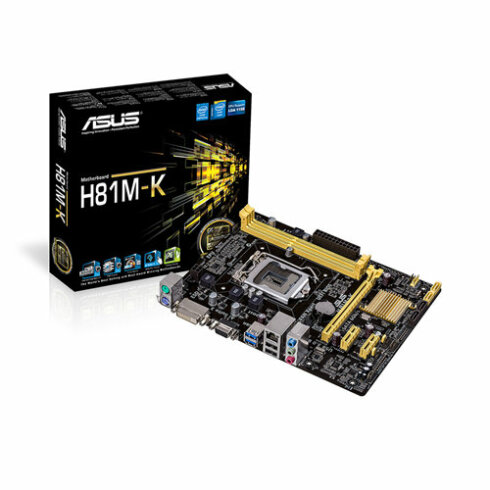

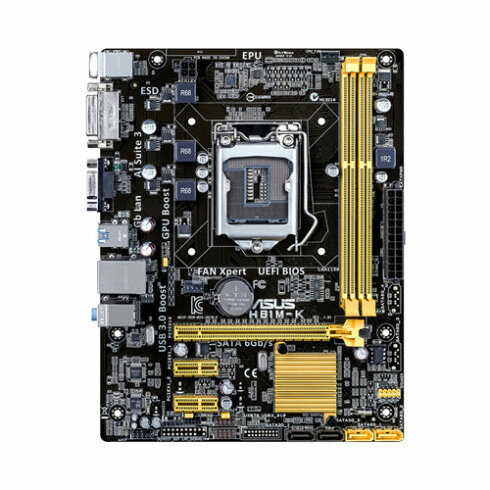

مادربرد ایسوس H81M-K

Model

Brand

ASUS

Model

H81M-K

Supported CPU

CPU Socket Type

LGA 1150

CPU Type

Core i7 / i5 / i3 / Pentium / Celeron (LGA1150)

Supported CPU Technologies

Turbo Boost Technology 2.0

Chipsets

Chipset

Intel H81

Onboard Video

Onboard Video Chipset

Integrated Graphics Processor
Multi-VGA output support: DVI/RGB ports
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024MB
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider

Memory

Number of Memory Slots

2×240pin

Memory Standard

DDR3 1600/ 1333/ 1066

Maximum Memory Supported

16GB

Channel Supported

Dual Channel

Expansion Slots

PCI Express x16

1 x PCI Express x16

PCI Express x1

2 x PCIe 2.0 x1

Storage Devices

SATA 3Gb/s

2 x SATA 3Gb/s port(s), dark brown

SATA 6Gb/s

2 x SATA 6Gb/s port(s), yellow

Onboard Audio

Audio Chipset

Realtek ALC887

Audio Channels

8 Channels

Onboard LAN

LAN Chipset

Realtek 8111G

Second LAN Chipset

Intel

Max LAN Speed

10/100/1000Mbps

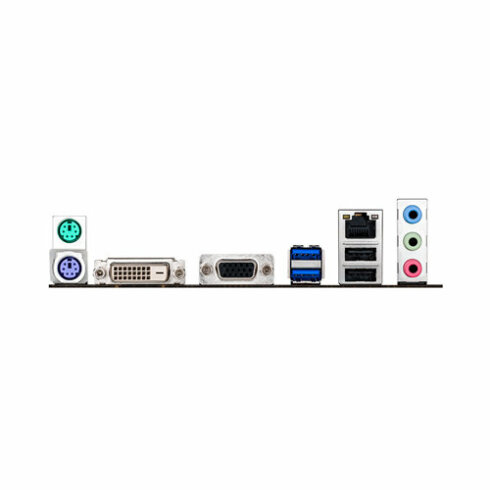

Rear Panel Ports

PS/2

1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)

Video Ports

1 x DVI
1 x D-Sub

RJ45

1 x RJ45

USB 3.0

2 x USB 3.0 (blue)

USB 1.1/2.0

2 x USB 2.0

Audio Ports

3 Ports

Internal I/O Connectors

Onboard USB

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

Other Connectors

1 x CPU Fan connector(s) (1 x 4-pin)
1 x Chassis Fan connector(s) (1 x 4-pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x Clear CMOS jumper(s)

Physical Spec

Form Factor

uATX

Dimensions (W x L)

8.90" x 6.90"

Power Pin

24 Pin
