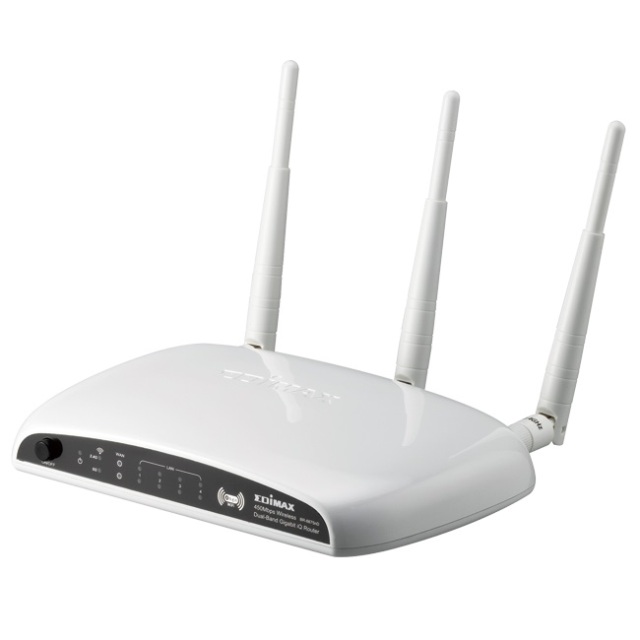

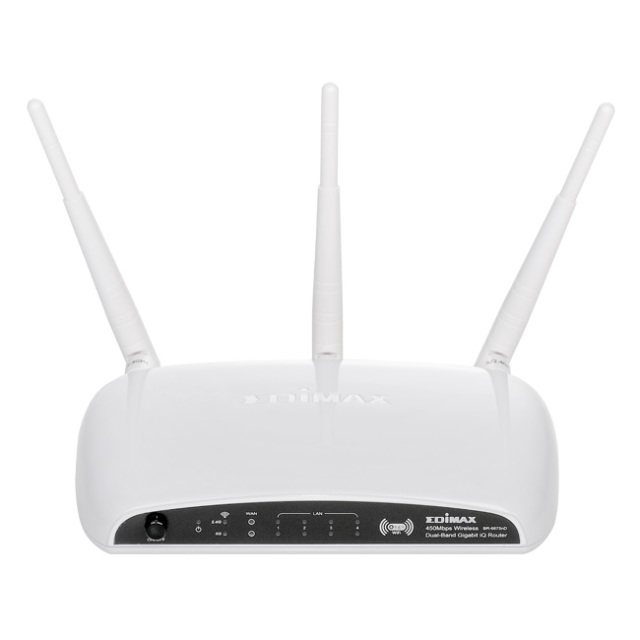

اکسس پوینت ادیمکس BR-6675ND N450

FUNCTIONS

HARDWARE INTERFACE

MANAGEMENT

•Supports AP, AP Client, AP Bridge, WDS, and Universal Repeater modes
•Port Triggering for special applications
•DDNS and SIP
•Virtual Server and DMZ hosting
•MAC/IP filter and URL blocking
•Static routing
•UPnP architecture
•VPN Pass-Through (IPSec/PPTP)
•Schedule control

•1 x RJ-45 Gigabit WAN port
•4 x RJ-45 Gigabit LAN ports
•LED Indicators: Power, Wireless, WAN, LNK/ACT for LAN
•3 x 3dBi dual-band antenna
•WPS/Reset button
•Wireless on/off switch

•12-language user interface
•Supports remote management
•System status and security Log (Web Interface)
•Firmware upgradable

WAN

OUTPUT POWER & SENSITIVITY GAIN (2.4GHz)

OUTPUT POWER & SENSITIVITY GAIN (5GHz)

•Supports WISP connection mode
•Supports RJ-45 cable/xDSL modems
•WAN protocol: PPPoE, Static IP, PPTP, Dynamic IP, L2TP

•11n: 15±1dBm,
•11g: 15±1dBm,
•11b: 18±1dBm
•11n (40MHz): -68dBm
•11n (20MHz): -71dBm
•11g: -74dBm
•11b: -87dBm

•11a(54Mbps): 15±1.5dBm
•11n(20MHz, MCS23): 14±1.5dBm
•11n(40MHz, MCS23): 14±1.5dBm
•11a(54Mbps): -72dBm±2dBm
•11n(20MHz, MCS23): -66dBm±2dBm
•11n(40MHz, MCS23): -63dBm±2dBm

SECURITY

MEMORY

HUMIDITY & TEMPERATURE

•NAT/NAPT IP sharing
•64/128-bit WEP encryption and WPA-PSK, WPA2-PSK security
•DHCP Server/Client
•QoS for critical operations
•SPI Anti-DoS Firewall

•8MB NOR Flash
•64MB RAM

•10-90% (non-condensing)
•0-40°C

POWER ADAPTER

DIMENSIONS

 CERTIFICATIONS

•DC 5V, 1.25A

•196 (W) x 114 (D) x 36 (H) mm

•CE, FCC
