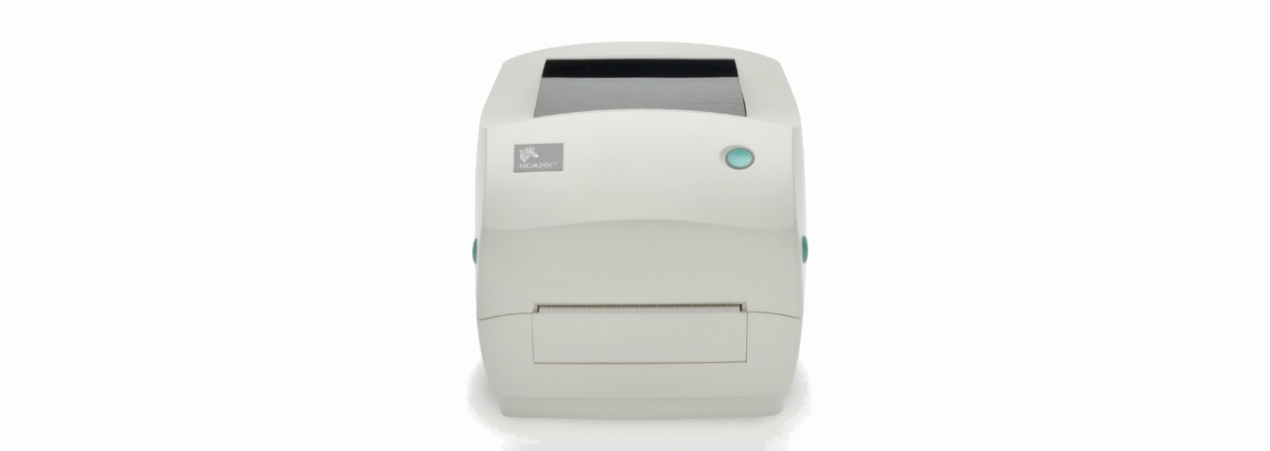

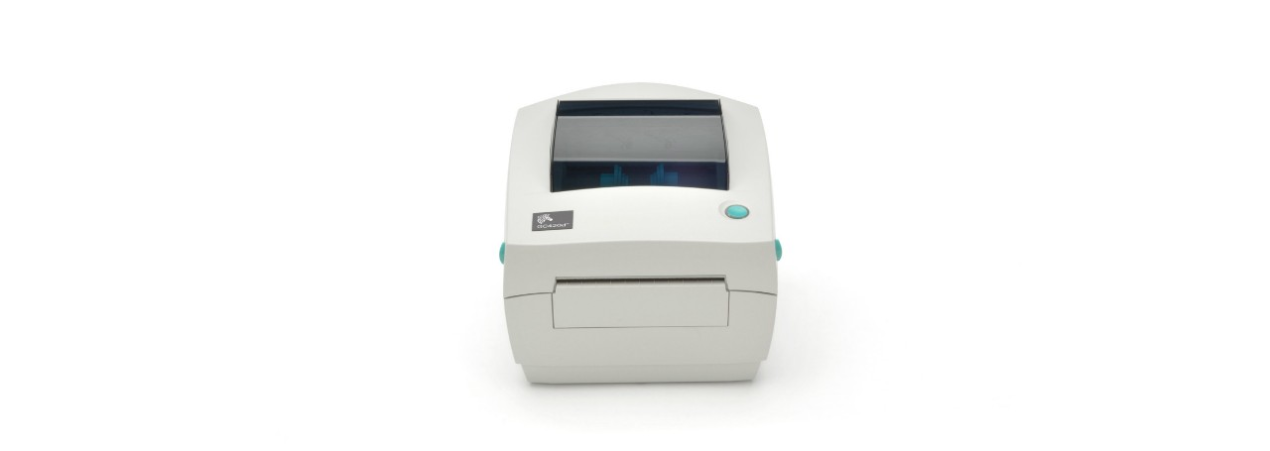

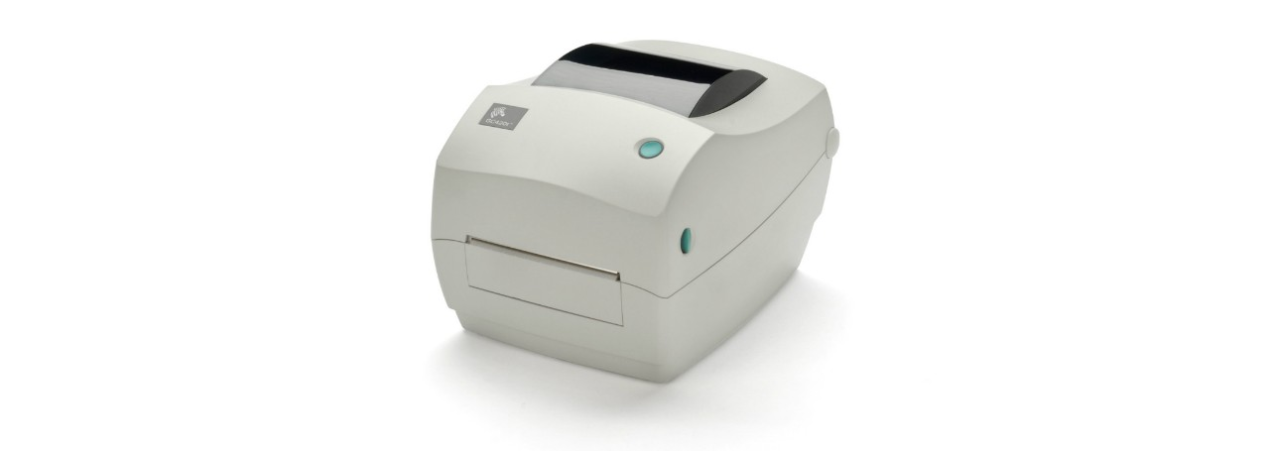

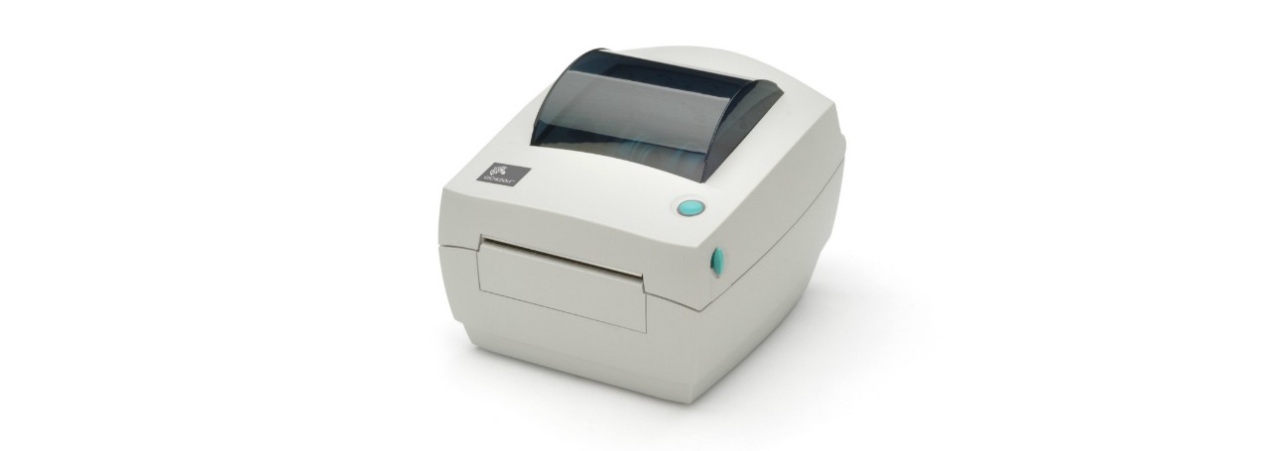

پرینتر لیبل زن زبرا GC420t

Printer Name

• GC420™

Standard Features

•  32 bit RISC processor
•  Programming languages: EZPL (ZPL, ZPL II and EPL2)
•  Triple connectivity: USB, parallel and serial
•  Print methods: Direct thermal and thermal transfer, printing of barcodes, text and graphics.
•  OpenACCESS™ for easy media and ribbon loading
•  Microsoft® Windows® drivers

Printer Specifications

• Resolution 203 dpi/8 dots per mm
• Memory 8 MB Flash, 8 MB SDRAM (standard)
• Print width 4.09”/104 mm
• Print length 39”/990 mm
• Print speed 4”/102 mm per second maximum
• Media sensors Reflective and transmissive sensors

Media Characteristics

• Media width 1.00”/25.4 mm to 4.25”/108 mm
• Media length 0.38”/9.6 mm to 39”/990 mm
• Maximum media roll size 5”/127 mm O.D. on a 1.00”/25.4 mm, 1.5”/38 mm I.D. core
• Media thickness 0.003”/0.08 mm to 0.007”/0.18 mm
• Media types : • Roll-fed or fan fold • Label stock (die cut or continous, direct thermal or thermal transfer) • Tag stock (die cut or continous, direct thermal or thermal transfer) • Receipt paper (continous, direct thermal) • Wristband stock (direct thermal or thermal transfer)

Ribbon Characteristics

• Outside diameter 1.34”/34 mm
• Standard length 244’ (74 m)
• Ribbon capacity 1:1 One ribbon per roll of media
• Width 1.33”/33.8 mm to 4.3”/110 mm
• Core I.D. 0.5”/12.7 mm

Operating Characteristics

Environmental

• • Operating Temp: 40° F/5° C to 105° F/41° C
• • Storage Temp: -40° F/-40° C to 140° F/60° C
• • Operating Humidity: 10% to 90% non-condensing R.H.
• • Storage Humidity: 5% to 95% non-condensing R.H.

Agency Approvals

• TUV-R NRTL, TUV-R CB, NOM, KCC, CE, FCC Class-B

Physical Characteristics

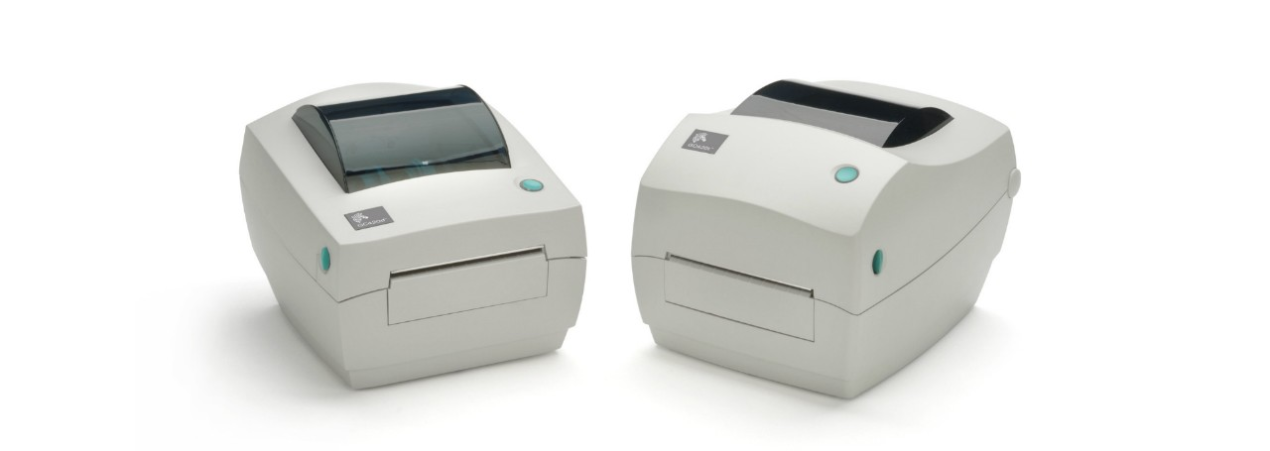

•                GC420d          GC420t
• Width: 7.9”/201 mm 7.9”/201 mm
• Height: 6.7”/170 mm 6.8”/173 mm
• Depth: 8.2”/208 mm 9.4”/239 mm
• Weight: 3 lbs/1.4 kg 3.2 lbs/1.5 kg

Zebralink™ Solutions
Software

•  ZebraDesigner™ Pro—An intuitive, easy-to-use software program for creating complex label designs (option)
•  ZebraDesigner—Offers basic features for simple label design
•  ZebraDesigner Driver—The most powerful driver available from Zebra

Firmware

•  ZPL II®—Zebra Programming Language provides sophisticated label formatting and printer control.
•  EPL2™—Eltron Programming Language with Line Mode simplifies label formatting and enables format compatibility with legacy applications.

Communication and Interface Capabilities

•  Centronics® parallel (36 pin) connector ports
•  RS-232 Serial interface
•  USB V1.1 interface, bi-directional

Fonts/Graphics/Symbologies

•  16 resident expandable ZPL fonts
•  One resident scalable ZPL font
•  5 resident expandable EPL2 fonts
•  Supports user-defined fonts and graphics—including custom logos

Bar Code Symbologies

•  Bar Code Ratios: 2:1 (non-rotated) and 3:1
•  Linear Bar Codes: Code 11, Code 39, Code 93,Code 128A, B & C (User selectable/Auto), UCC/EAN-128, Code 128, UPC-A, UPC-E, EAN-8,EAN-13, EAN-14, UPC-A and UPC-E with EAN 2 or 5 digit extensions, UPC-E with 2 and 5 add on, Plessey, POSTNET, Standard 2 of 5, Industrial 2 of 5, Interleaved 2 of 5, LOGMARS, MSI, Codabar, and GS1 DataBar™ (formerly RSS), Postnet (5, 9, 11 & 13 digit) Japanese Postnet, Plessey (MSI-1), MSI-3, German Post Code, RSS-14 (limited, truncated, stacked).
•  2-Dimensional: PDF417 (MicroPDF-417 and MacroPDF-417), Code 49, Maxicode, Codablock, Data Matrix, QR code, and Aztec.

Options and Accessories

•  Dispenser—Label peel and present with label present sensor
•  KDU and KDU Plus™—Keyboard display units for stand-alone printing applications

Electrical Specifications

•  Auto-ranging external power supply with C7 type connector
•  Output: 20 VDC, 3.0A
•  Input: 100-240 VAC, 50-60 Hz
