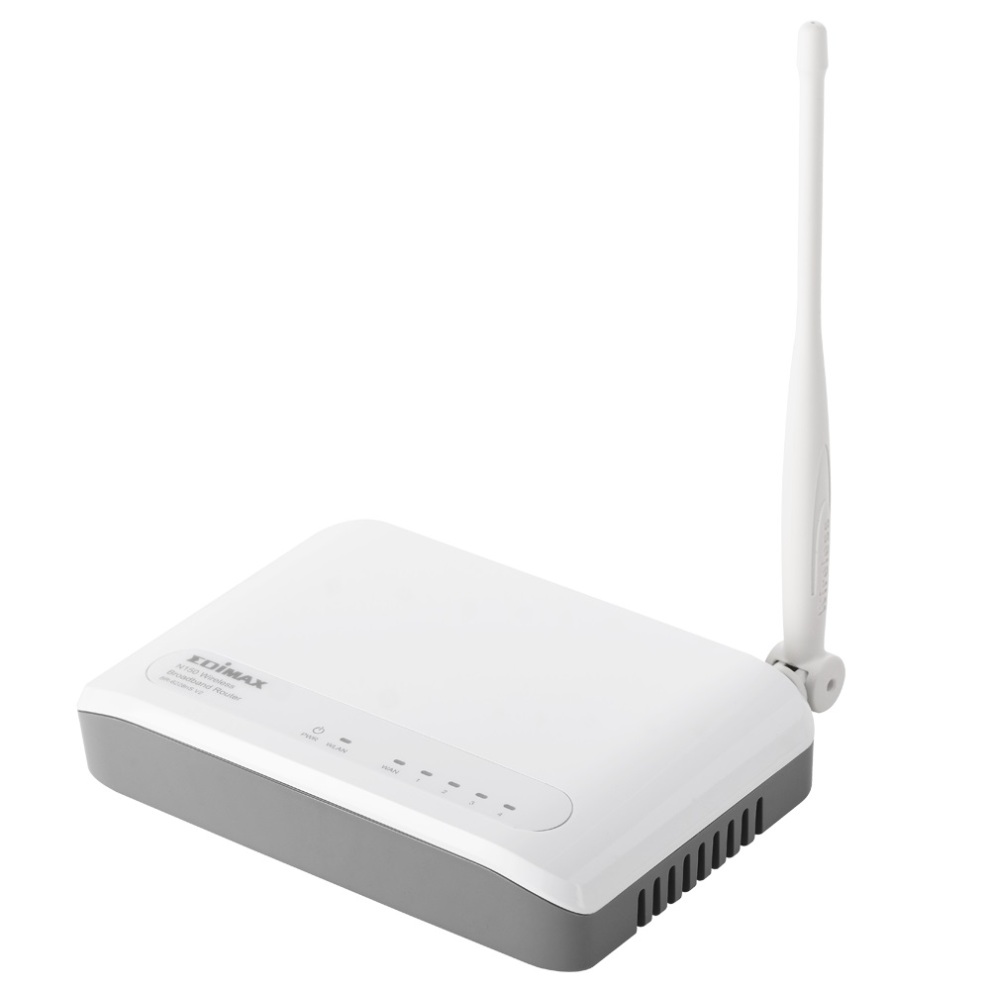

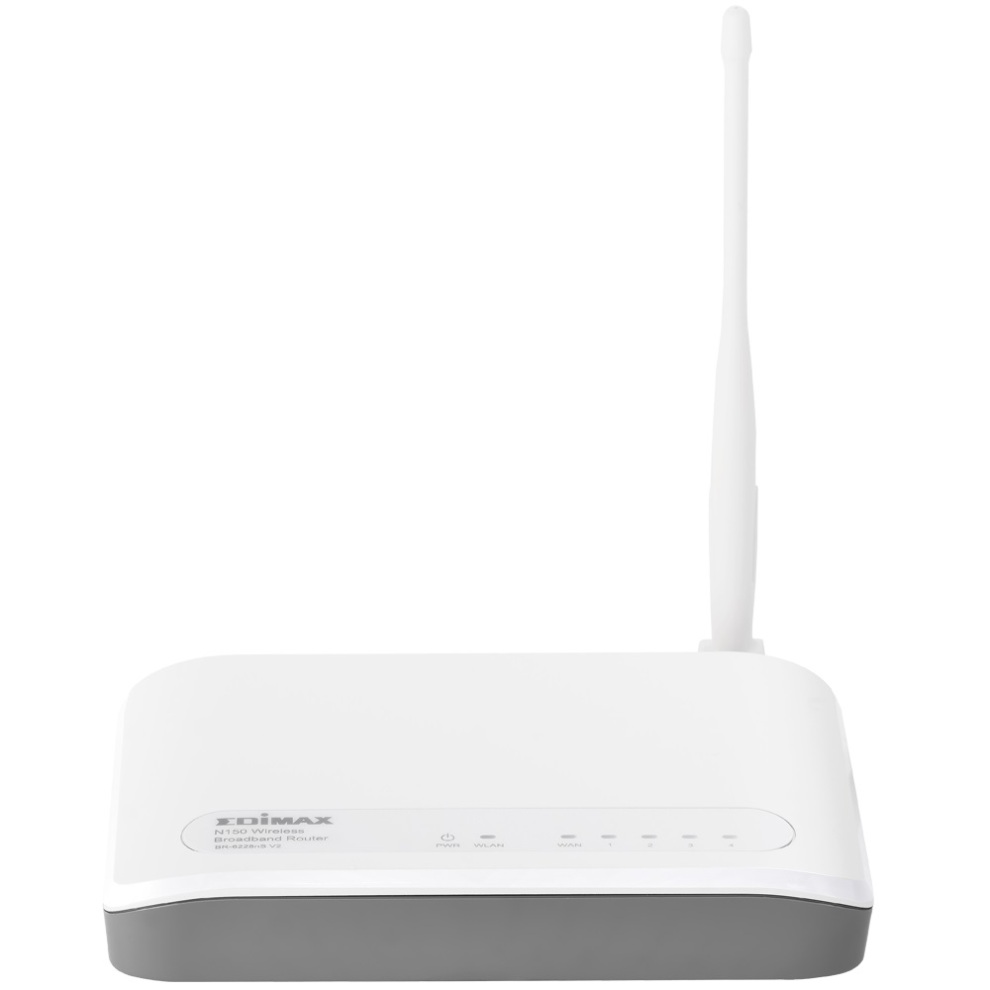

اکسس پوینت ادیمکس BR-6228NS v2 N150

FUNCTIONS

HARDWARE INTERFACE

MANAGEMENT

•Supports router, access point & range extender modes
•Port triggering for special applications
•DDNS and SIP
•Guest network
•Virtual server and DMZ hosting
•MAC/IP filter and URL blocking
•Static routing
•UPnP architecture
•VPN pass-through (IPSec/PPTP)
•Wi-Fi schedule control

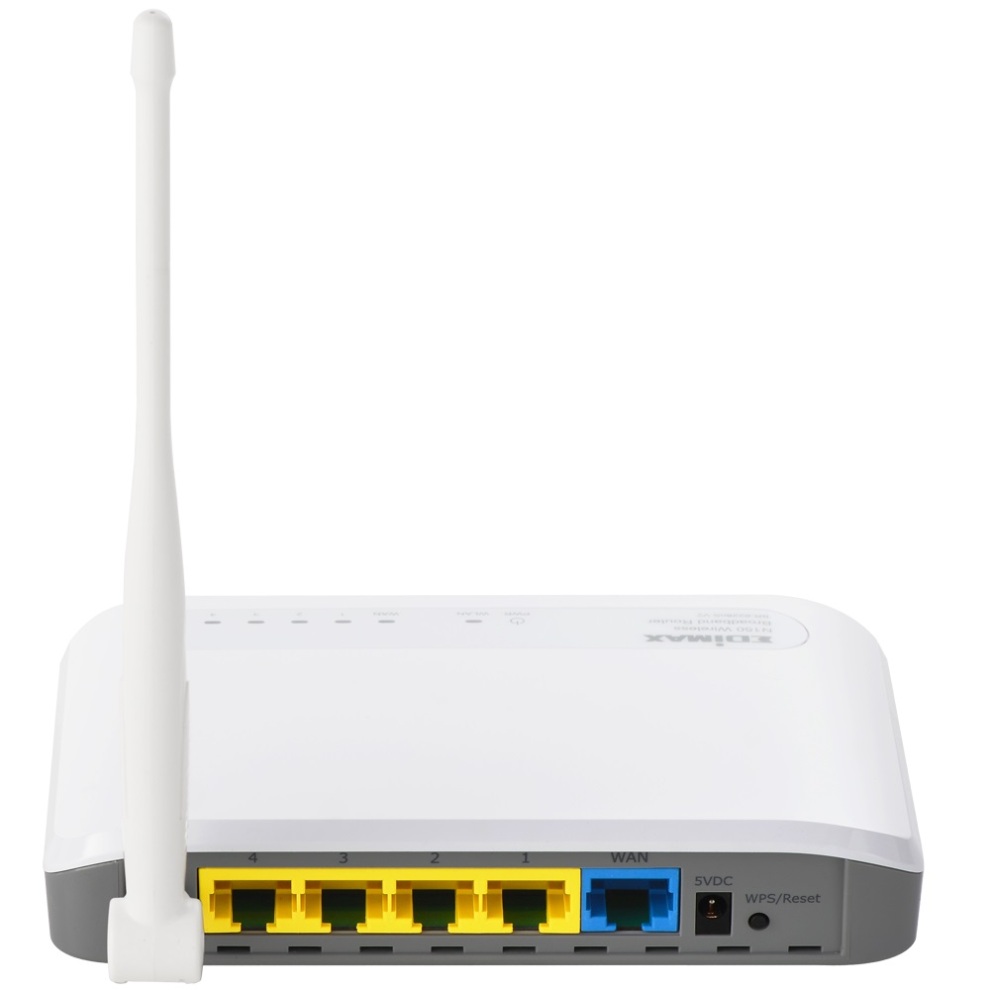

•1 x RJ-45 Fast Ethernet WAN port
•4 x RJ-45 Fast Ethernet LAN port
•LED Indicators: power, wireless, WAN, LNK/ACT for LAN
•1 x 5dBi fixed antenna
•WPS/Reset button

•Intuitive user interface
•System status and security log (web interface)
•Firmware upgradeable

WAN

SECURITY

OUTPUT POWER & RECEIVE SENSITIVITY

•Supports WISP connection mode
•Supports RJ-45 cable/xDSL modems
•WAN protocol: PPPoE, static IP, dynamic IP, PPTP and L2TP

•NAT/NAPT IP sharing
•WEP, WPA & WPA2 encryption
•DHCP server/client
•QoS for critical operations
•SPI anti-DoS firewall

•E.I.R.P: < 20dBm
•11b(11Mbps): -82dBm±2dBm
•11g(54Mbps): -70dBm±2dBm
•11n(20MHz): -67dBm±2dBm
•11n(40MHz): -63dBm±2dBm

MEMORY

INSTALLATION KIT

HUMIDITY & TEMPERATURE

•4MB NOR Flash
•16MB RAM

•Smart iQ Setup, no CD required
•Supports smartphone, tablet or laptop setup. (iOS 4 or Android 4 and above are required for smartphone or tablet setup.)

•10-90% (non-condensing)
•0-40^oC

POWER ADAPTER

DIMENSIONS & WEIGHT

CERTIFICATIONS

•DC 5V, 1A

•135 (W) mm x 110 (D) mm x 28 (H) mm
•151g (antenna weight included)

•CE, FCC
