مادربرد بایواستار H81MHP2

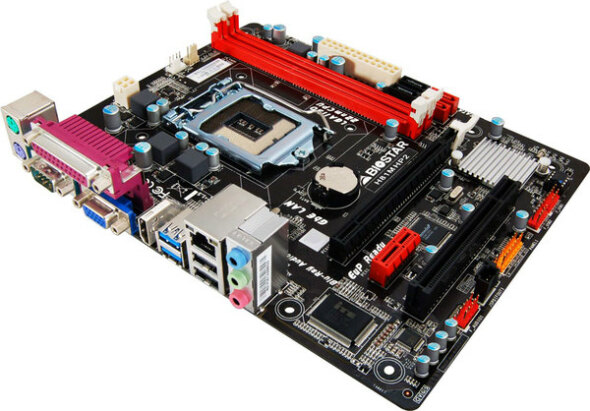

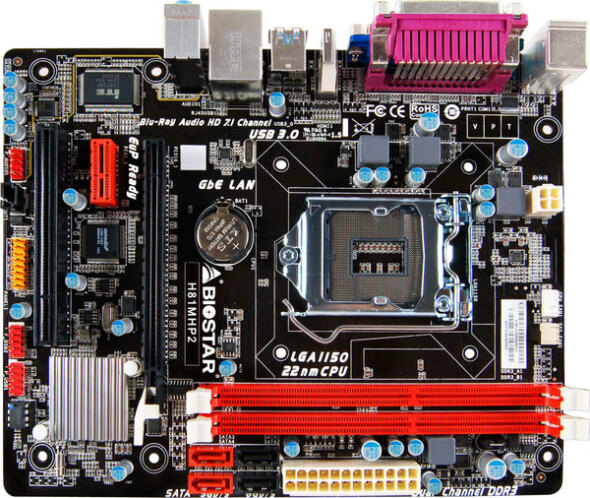

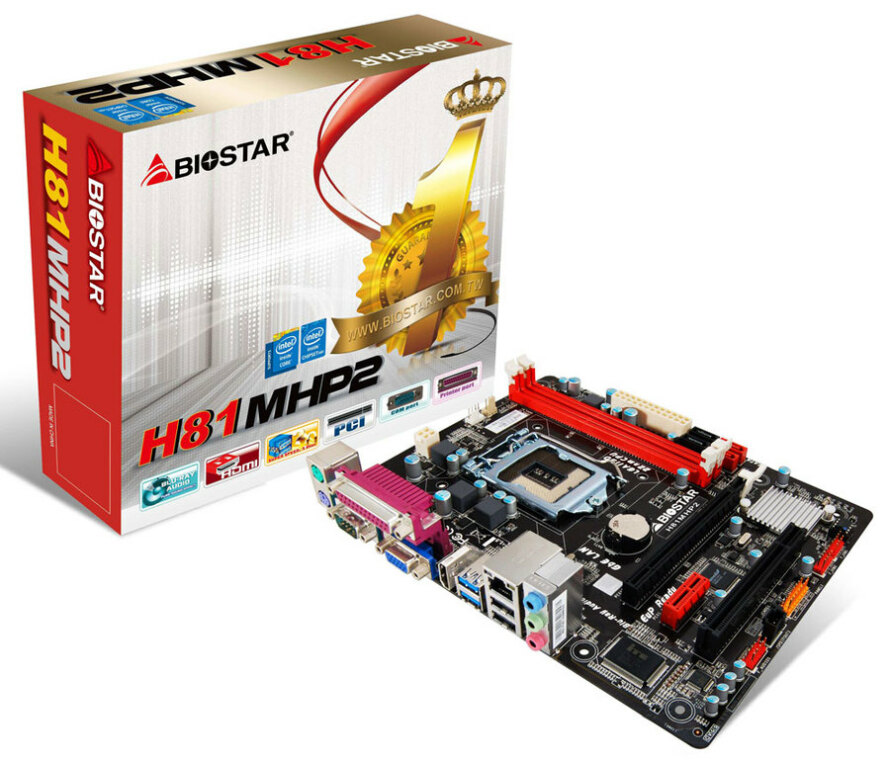

Biostar H81MHP2 LGA1150 H81 Mainboard
گارانتی (سایبر - 2 سال)
- Supported the Intel 4th generation Core i7/ i5/ i3 processors in the 1150 package
- Intel H81 single chip architecture
- Supported 2 DIMM of DDR3 1600/1333/1066MHz up to 16G maximum capacity
- Supports BIO-Remote 2 Technology
- Supports Charger Booster Technology
- Intel Smart Connect Technology
- Intel Rapid Start Technology
| Chipset | Intel H81 |
| CPU SUPPORT | Intel® Core™ i7 LGA 1150 Processor Intel® Core™ i5 LGA 1150 Processor Intel® Core™ i3 LGA 1150 Processor Intel® Pentium® LGA 1150 Processor Maximum CPU TDP (Thermal Design Power) : 95Watt |
| MEMORY | Support Dual Channel DDR3 1600/1333/1066 MHz 2 x DDR3 DIMM Memory Slot Max. Supports up to 16GB Memory |
| EXPANSION SLOT | 1 x PCI-E x16 2.0 Slot 1 x PCI-E x1 2.0 Slot 1 x PCI Slot |
| STORAGE | 2 x SATA3 Connector 2 x SATA2 Connector |
| USB | 2 x USB 3.0 Port 2 x USB 2.0 Port 2 x USB 2.0 Header |
| LAN | Realtek RTL8111G - 10/100/1000 Controller |
| INTEGRATED VIDEO | By CPU model Supports DX11.1 |
| CODEC | Realtek ALC892 8-Channel Blu-ray Audio |
| REAR I/O | 1 x PS/2 Mouse 1 x PS/2 Keyboard 2 x USB 3.0 Port 2 x USB 2.0 Port 1 x COM Port 1 x Printer Port 1 x HDMI Connector 1 x VGA Port 1 x RJ-45 Port 3 x Audio Connector |
| INTERNAL I/O | 2 x USB 2.0 Header 2 x SATA3 6Gb/s Connector 2 x SATA2 3Gb/s Connector 1 x Front Audio Header 1 x Front Panel Header 1 x S/PDIF-OUT Header 1 x CPU FAN Header 1 x System FAN Header |
| H/W Monitoring | CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control System Voltage Monitoring |
| DIMENSION | Micro ATX Form Factor Dimension: 22.6cm x 18cm ( W x L ) |
| OS SUPPORT | Support Windows 7 / 8 / 8.1 |
| Bundle Software | BIO-Remote2 Smart Speed LAN |
| ACCESSORIES | 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide |
| FEATURES | Windows 8 Compatible Supports 100% Solid capacitor Supports Charger Booster Supports BIOS Online Update |
مادربرد
Biostar
H81
LGA1150
ندارد
ندارد
ندارد
2 عدد
2 عدد
6 عدد
2 عدد
دارد
ندارد
ندارد
DDR3
نقد و بررسی کاربران
