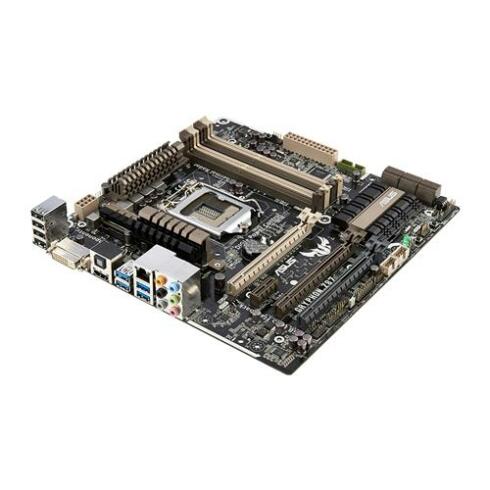

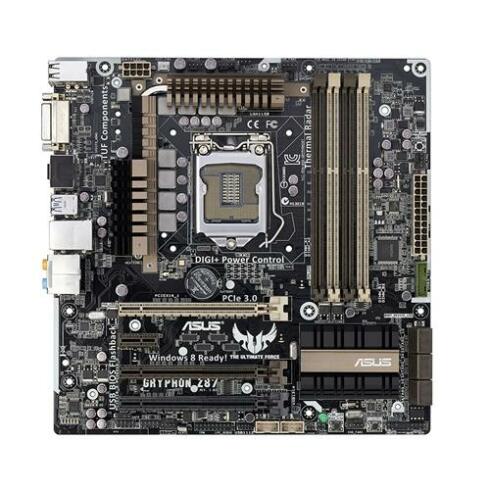

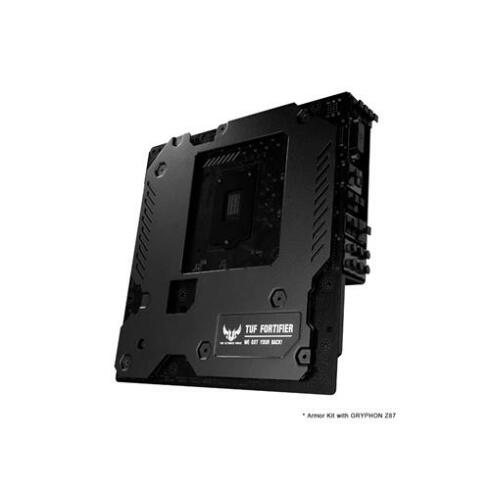

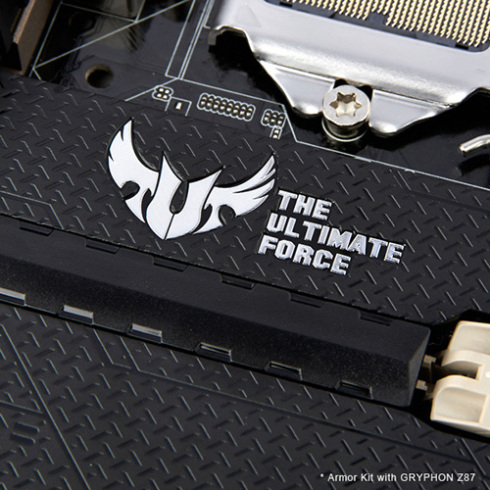

مادربرد ایسوس GRYPHON Z87

Model

Brand

ASUS

Model

GRYPHON Z87

App-Enabled

Yes

Supported CPU

CPU Socket Type

LGA 1150

CPU Type

4th-generation Core i3,i5,i7,Pentium,Celeron(LGA1150)

Supported CPU Technologies

Turbo Boost Technology 2.0

Chipsets

North Bridge

Intel Z87

Memory

Number of Memory Slots

4×240pin

Memory Standard

DDR3 1866/1600/1333 MHz

Maximum Memory Supported

32GB

Channel Supported

Dual Channel

Expansion Slots

PCI Express 3.0 x16

2(x16 or dual x8)

PCI Express 2.0 x16

1(running at x4)

PCI Express x1

1

Storage Devices

SATA 6Gb/s

6 x SATA 6Gb/s

SATA RAID

0/1/5/10

Onboard Audio

Audio Chipset

Realtek ALC892

Audio Channels

8 Channels

Onboard LAN

LAN Chipset

Intel I217-V

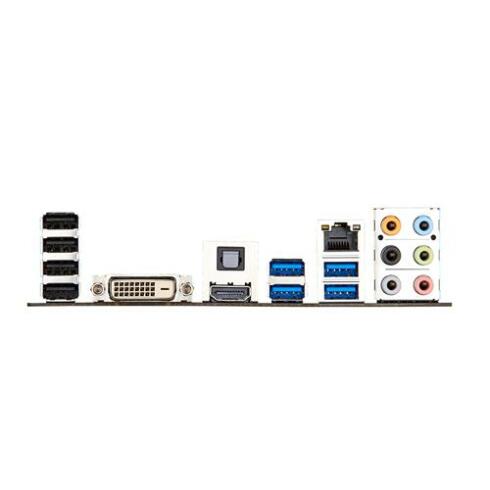

Rear Panel Ports

Video Ports

DVI

HDMI

1 x HDMI

USB 1.1/2.0

4 x USB 2.0

USB 3.0

4 x USB 3.0

S/PDIF Out

1 x Optical

Audio Ports

6 Ports

Internal I/O Connectors

Onboard USB

2 x USB 3.0 + 4 x USB 2.0

Other Connectors

1 x TPM header
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
4 x Chassis Fan connector(s) (4 x 4 -pin)
1 x Assistant Fan connector(s) (1 x 3 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x DirectKey Button(s)
1 x DRCT header(s)
1 x MemOK! button(s)
3 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x USB BIOS Flashback button(s)
