| Print Method Thermal Transfer / Direct Thermal |
| Print Speed | 4 IPS (102 mm/s) | |
| Print Resolution | 203 dpi (8 dots/mm) | |
| Print Length | Min. 0.16” (4 mm)**; Max. 68” (1727 mm) | |
| Print Width | 4.25" (108mm) | |
| |
| Printer language | EZPL, GEPL, GZPL | |
| Printer Fonts | Bitmap fonts 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B
Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
Bitmap fonts 8 times expandable in horizontal and vertical directions
Scalable fonts 90°, 180°, 270° rotatable | |
| Download Fonts | Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
Asian fonts 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions
Scalable fonts 90°, 180°, 270° rotatable | |
| Graphics | Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software | |
| Barcodes | 1-D Bar codes:
Code 39, Code 93, EAN 8/13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128,
UCC/EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar, German Post Code, Planet 11 & 13 digit, Japanese Postnet, I 2 of 5 with human readable check digit, Standard 2 of 5, Industrial 2 of 5 , Logmars, Code 11, Code 49, Cadablock
2-D Bar codes: | |
| |
| Ribbon | Wax, wax/resin, resin
Length: 981’ (300 m)
Width: 1.18” Min - 4.33” (30 mm - 110 mm) Max
Ribbon roll diameter.: 2.67“ (68 mm)
Core diameter: 1” (25.4 mm) | |
| |
| Processor | 32 Bit RISC CPU | |
| Memory | 4MB Flash (2MB for user storage) / 8MB SDRAM | |
| Sensor Type | Fixed center aligned see-through sensor, adjustable reflective sensor | |
| Software Included | GoLabel,QLabel-IV (for EZPL only)
Driver: Windows 2000, XP, Vista, 7,8, Windows Server 2003 & 2008
DLL: Windows 2000, XP and Vista | |
| Dimensions (stored) | Length: 11.2” (285 mm)
Height: 6.8” (171 mm)
Width: 8.9” (226 mm) | |
| Weight | 6 lbs (2.72Kg) ,excluding consumables | |
| Operating Systems | Label design software: QLabel-IV (for EZPL only)
Driver: Windows 2000, XP, Vista, 7,8, Windows Server 2003 & 2008
DLL: Windows 2000, XP and Vista | |
| Environmental Conditions | Operation temperature: 41°F to 104°F (5°C to 40°C)
Storage temperature: -4°F to 122°F (-20°C to 50°C) | |
| Humidity Conditions | Operation: 30-85%, non-condensing
Storage: 10-90%, non-condensing | |
| |
| Voltage | Auto Switching 100-240VAC | |
| |
| |

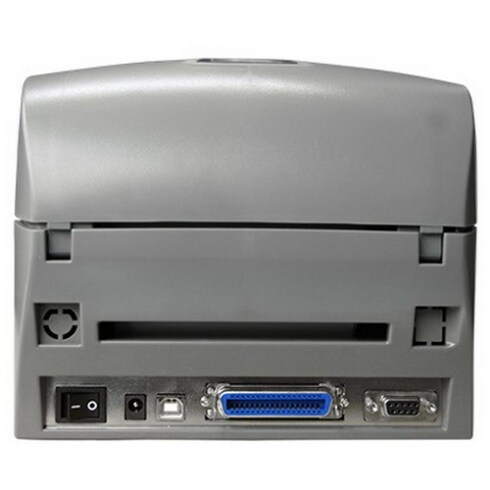

| Connectivity / Standard Ports | Serial port: RS-232 (DB-9)
USB port (default on)
Parallel port: Centronics 36-pin | |
| |
| Options | 802.11 b/g wireless print server (Default off; disables USB when in use)
Real Time Clock with CF card adapter (max. 1GB CF card)
External label roll holder for 10” (250 mm) O.D. label rolls
External label rewinder | |
