هارد تحت شبکه کیونپ TVS-EC2480U SAS RP 8GE-R2
TVSEC2480U SAS RP 8GER2

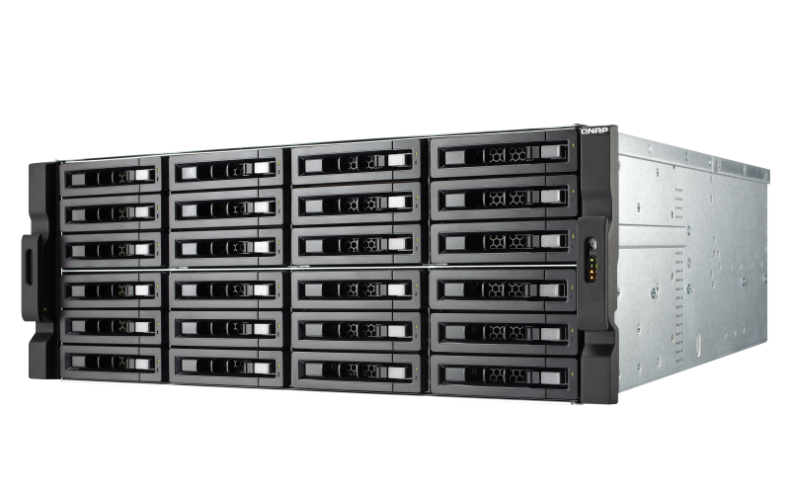

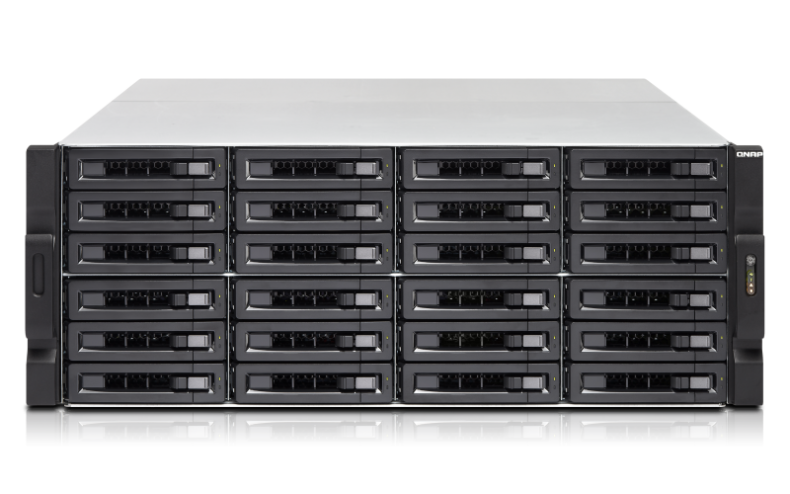

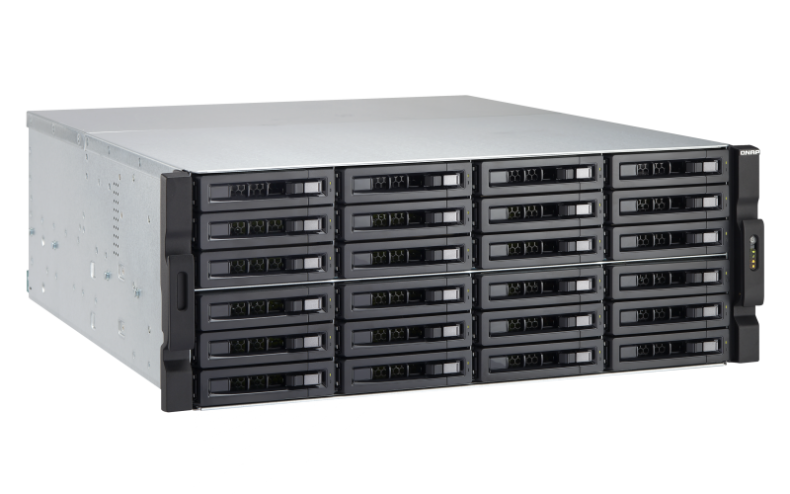

TVS-EC2480U SAS RP 8GE-R2 24Bay Network Storage
گارانتی شرکت پانا
کد کالا:
Lion-Product-777353
ناموجود
CPU | Intel® Xeon® E3-1245 v3 3.4 GHz Quad-core Processor, E3-1246 v3 3.5 GHz Quad-core Processor or a compatible E3-1200 v3 family Processor |
---|---|
Memory | Total memory slots: 4 TVS-EC2480U-SAS-RP-8GE-R2: System memory: 8 GB DDR3 ECC RAM Memory module pre-installed: 4 GB x2 Memory expandable up to: 32 GB (8GB x4) TVS-EC2480U-SAS-RP-16G-R2: System memory: 16 GB DDR3 non-ECC RAM Memory module pre-installed: 8 GB x2 Memory expandable up to: 32 GB (8GB x4) Note:
|
Flash Memory | 512MB DOM |
Internal Cache Port | Two mSATA port on board for read caching. The standard system is shipped with two 128GB mSATA flash. For the optional mSATA flash |
Hard Drive | 24 x 3.5-inch SAS 12Gbps, SAS/SATA 6Gbps/3Gbps hard drive or 2.5-inch SAS/SATA SSD hard drive NOTE:
|

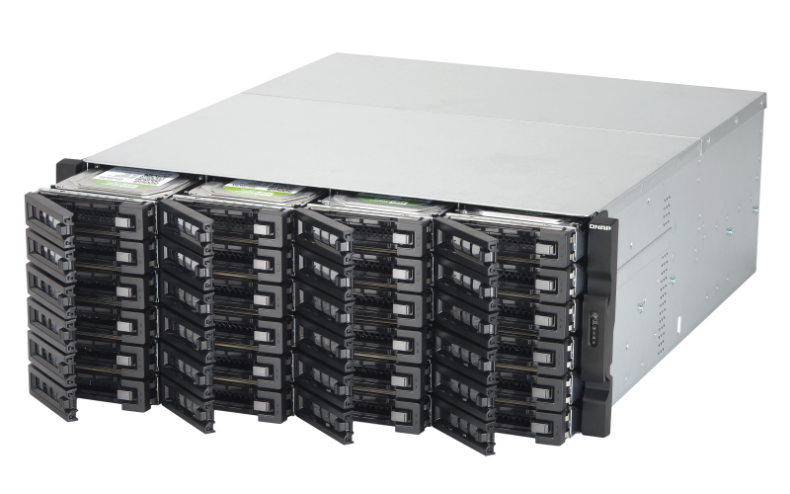

Hard Drive Tray | 24 x hot-swappable and lockable tray |

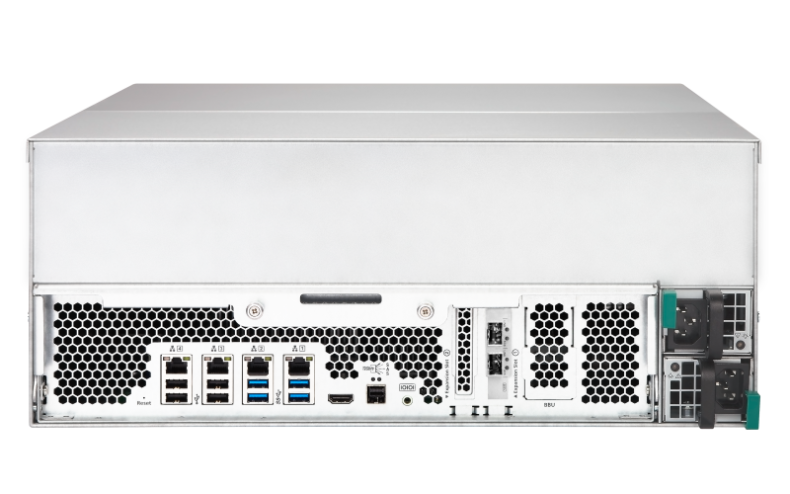

LAN Port | Built-in 2 x 10 GbE SFP+ ports (LAN-10G2SF-MLX) and 4 x GbE ports 1. For the optional network card compatibility list 2. For the information of network card installation. |
LED Indicators | 10 GbE, Status, LAN, Storage expansion port status |
USB | 4x USB 3.0 port (rear) 4x USB 2.0 port (rear) Support USB printer, pen drive, USB hub, and USB UPS etc. |
Buttons | System: Power button and reset button |
Alarm Buzzer | System warning |
Form Factor | 4U, Rackmount |
Dimensions | 176.15(H) x 442.5(W) x 530.5(D) mm 6.94(H) x 17.42(W) x 20.89(D) inch |
Weight | Net weight (NAS only) : 23.08 kg/50.88 lb Gross weight (with packing and accessories) : 28.56 kg/ 62.96 lb |
Sound Level (dB)* | Sound Level (dB) Sound pressure (LpAm) (bystander position): 36.2 dB (with 24 x HITACHI HUS724020ALA640 hard drive installed) |
Power Consumption (W) | Sleep mode: 144.82 In Operation: 351.21 W (with 24 x HITACHI HUS724020ALA640 hard drive installed |
Temperature | 0-40˚C |
Relative Humidity | 5~95% non-condensing, wet bulb: 27˚C. |
Power Supply | Redundant power: Input 90~264VAC; 650W x 2 |
PCIe Slot | 2 (Right slot: 1* PCIe Gen3 x8; Left slot: 1* PCIe Gen3 x4) Note: The PCIe Gen3 x8 slot is occupied by a 10GbE network adapter. |
Fan | 4 x 8 cm smart cooling fan |
هارد اینترنال
سازنده
QNAP
فرم ظاهری
3.5 اینچ
رابط
SATA III
ظرفیت
4 ترابایت
حافظه کش
64 مگابایت
سرعت چرخش
5400 دور در دقیقه
