هارد تحت شبکه کیونپ TVS-EC1680U SAS RP 8GE-R2
TVSEC1680U SAS RP 8GER2

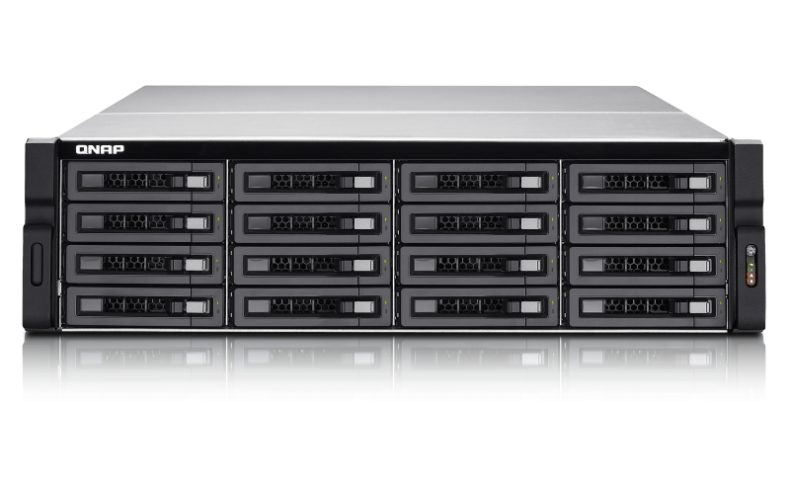

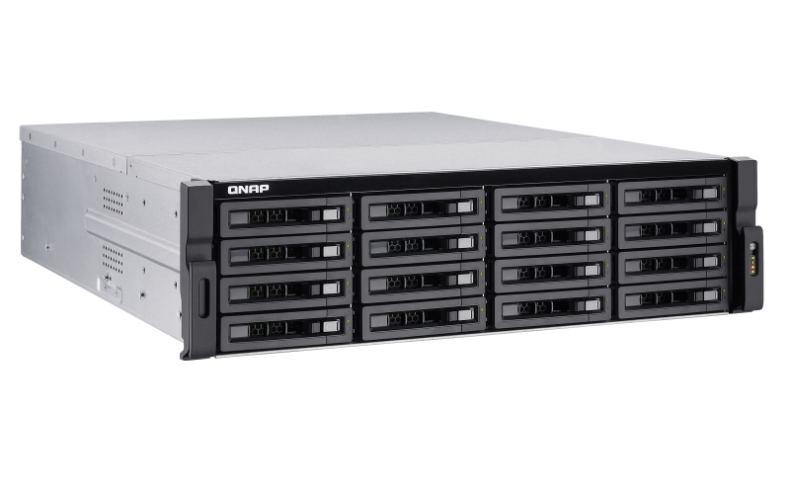

TVS-EC1680U SAS RP 8GE-R2 16Bay Network Storage
گارانتی شرکت پانا
کد کالا:
Lion-Product-777352
ناموجود
| CPU | Intel® Xeon® E3-1245 v3 3.4 GHz Quad-core Processor, E3-1246 v3 3.5 GHz Quad-core Processor or a compatible E3-1200 v3 family Processor |
|---|---|
| Memory | Total memory slots: 4 TVS-EC1680U-SAS-RP-8GE-R2: System memory: 8 GB DDR3 ECC RAM
Memory module pre-installed: 4 GB x2 Memory expandable up to: 32 GB (8GB x4) TVS-EC1680U-SAS-RP-16G-R2: System memory: 16 GB DDR3 non-ECC RAM
Memory module pre-installed: 8 GB x2 Memory expandable up to: 32 GB (8GB x4)
Note:
|
| Flash Memory | 512MB DOM |
| Internal Cache Port | Two mSATA port on board for read caching. The standard system is shipped with two 128GB mSATA flash. For the optional mSATA flash |
| Hard Drive | 16 x 3.5-inch SAS 12Gbps, SAS/SATA 6Gbps/3Gbps hard drive or 2.5-inch SAS/SATA SSD hard drive NOTE:
|

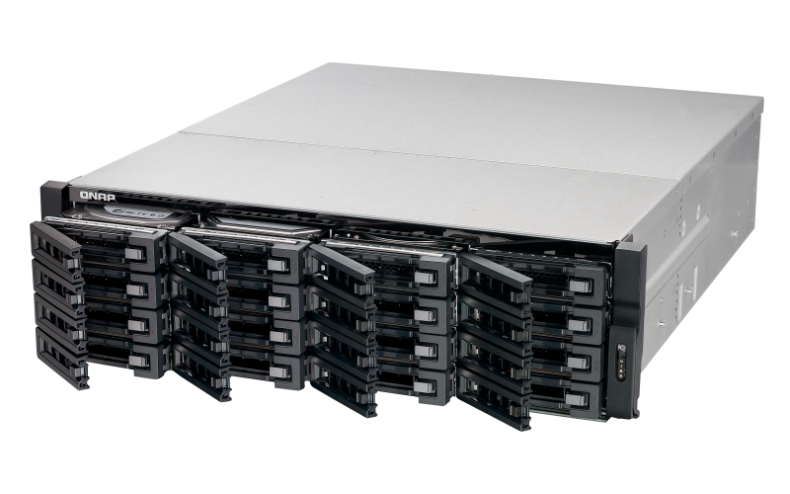

| Hard Drive Tray | 16 x hot-swappable and lockable tray |
| LAN Port |
Built-in 2 x 10 GbE SFP+ ports (LAN-10G2SF-MLX) and 4 x GbE ports 1. For the optional network card compatibility list 2. For the information of network card installation, please refer to chapter 6 in the. |
| LED Indicators | 10 GbE, Status, LAN, Storage expansion port status |

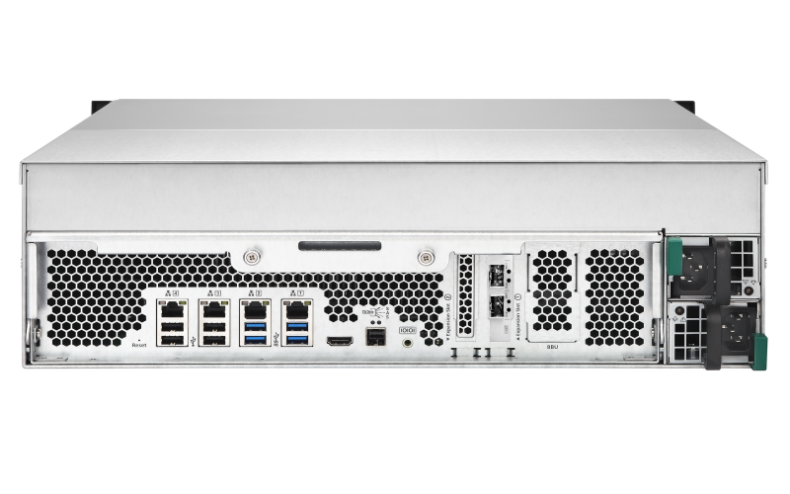

| USB | 4x USB 3.0 port (rear) 4x USB 2.0 port (rear) Support USB printer, pen drive, USB hub, and USB UPS etc. |
| Buttons | System: Power button and reset button |
| Alarm Buzzer | System warning |
| Form Factor | 3U, Rackmount |
| Dimensions | 130(H) x 442.5(W) x 530.5(D) mm 5.12(H) x 17.42(W) x 20.89(D) inch |
| Weight | Net weight (NAS only) : 18.3 kg/40.34 lb Gross weight (with packing and accessories) : 24.18 kg/ 53.30 lb |
| Sound Level (dB)* | Sound Level (dB) Sound pressure (LpAm) (bystander position): 35.5 dB (with 16 x HITACHI HUS724020ALA640 hard drive installed) |
| Power Consumption (W) | Sleep mode: 136.57 In Operation: 212.51 W (with 16 x HITACHI HUS724020ALA640 hard drive installed) |
| Temperature | 0-40˚C |
| Relative Humidity | 5~95% non-condensing, wet bulb: 27˚C. |
| Power Supply | Redundant power: Input 90~264VAC; 650W x 2 |
| PCIe Slot | 2 (Right slot: 1* PCIe Gen3 x8; Left slot: 1* PCIe Gen3 x4) Note: The PCIe Gen3 x8 slot is occupied by a 10GbE network adapter. |
| Fan | 4 x 8 cm smart cooling fan |
هارد اینترنال
سازنده
QNAP
فرم ظاهری
3.5 اینچ
رابط
SATA III
ظرفیت
1 ترابایت
حافظه کش
32 مگابایت
سرعت چرخش
7200 دور در دقیقه
